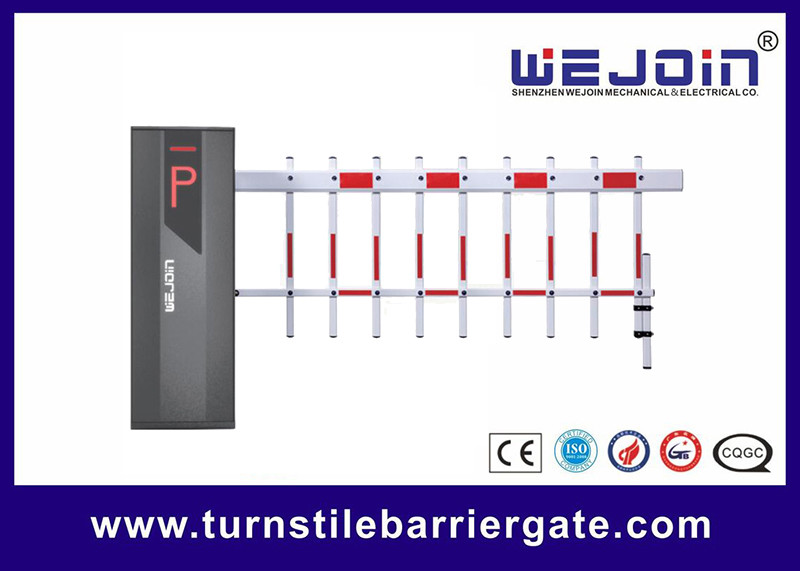

Yellow/Blue/Customized Color Vehicle Barrier Gate for High Traffic
Working environment and data
1. Mechanism temperature -25℃+85℃
2. Control board temperature -20+85℃
3. Power supply 220V±10% 50/60 Hz
110V±10% 50/60 Hz
4. Rated power 120W
5. Relative humidity ≤90%
6. Remote control ≥30M
7. Net weight 60 Kg
Motor Speed and boom type
|
Boom type |
Boom length (M) |
Opening time(S) |
|
Straight boom |
6M≥L＞4.5M |
6S |
|
4.5M≥L＞3M |
3S |
|
|
3M≥L |
1.5S |
|
|
Articulated boom, 90 degree |
5M≥L＞3M |
6S |
|
3M≥L |
3S |
|
|
Articulated boom, 180 degree |
5M≥L＞3M |
6S |
|
3M≥L |
3S |
WEJOIN Company
Technological innovation, product quality, and manufacturing capabilities are the driving force of WEJOIN's continuous development. Brand, channels, and after-sales service are the pillars of WEJOIN's long-term development. WEJOIN has established sales and service organizations in more than 30 provinces and cities across China, providing high-quality products and services to more than 3,000 distributors and system vendors. WEJOIN products are sold all over the world. It has set up agency service outlets in more than 100 countries and regions including Mexico, Brazil, Britain, Malaysia, Turkey, Israel, India, Thailand, South Africa, etc. It is the largest barrier gate manufacturer in China with the largest export volume.
Functions and Features
1. No spring design, eliminating the need for mechanical leveling, maintenance-free.
2. The boom will not fall off when power off, high safety.
3. Minimal operation, the direction can be exchanged in 30 seconds.
4. Bluetooth control, one-key remote service.
5. The perfect combination of worm gear and gear is reliable.
6. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
7. Support RS485 communication or RS485 off-line connection.
8. DC24V power supply is optional.
