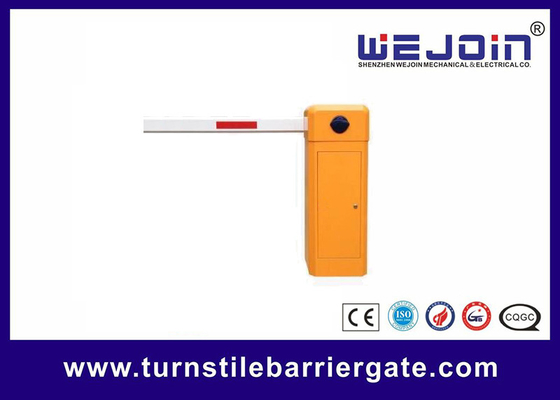

Intelligent parking aluminum arm barrier gate for high traffic with remote control
Functions and features
1. Manual advanced clutch, to rise up the boom by hand when power off, it will auto-reset when power on.
2. Adopts the compression spring for safety precaution to avoid the accidents caused by the spring broken.
3. Three buttons to control the boom to rise up or fall or stop.
4. Auto-reversing when meets obstacles.
5. Available for the internal and external loop detector.
6. Opening, closing, and stopping to control the interface.
7. Infrared photocell for anti-bumping.
8. RS485 communicational module to connect the computer.
9. Traffic lights interface.
10. Wire control and remote control.
11. Auto warming up when the system is below zero degrees centigrade.
The left and the right installation
For the client convenience, the following figures are the left and the right installation
For the left installation, the housing installs on the left side of the door, and the arm stretches to the right, the boom is inside the door.
For the right installation, the housing installs on the right side of the door, and the arm stretches to the left, the boom is inside the door.
Barrier Gate Model Selection
|
Item |
102-11 |
102-13 |
102-16 |
|
Running time |
1sec |
3 sec |
6sec |
|
Boom type |
straight |
||
|
Max boom length |
3m |
4.5m |
6m |
