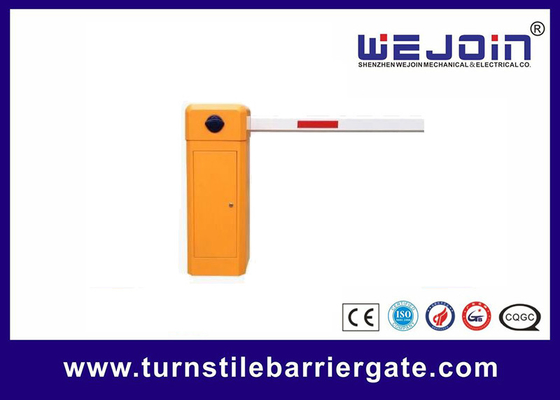

High-speed traffic security automatic barrier gate for vehicle access control system
Barrier Gate Auto-aging test
|
Sub-menu |
Defaults |
Range |
Remarks |
|
1 Time Interval |
OFF |
0-5, 0 is OFF |
The time interval for the auto aging test; unit: second. |
|
2 Boom up angle |
0 |
0-90 |
Boom up angle after switching from off to on. If the value is odd, it will keep switching from off to on all the time, if the value is even, it will turn from off to on once and then completely turn off once again, and repeat continuously. |
Boom Barrier Functions and features
1. Auto-reversing when meets obstacles.
2. Available for the internal and external loop detector.
3. Opening, closing, and stopping to control the interface.
4. Infrared photocell for anti-bumping.
5. RS485 communicational module to connect the computer.
6. Traffic lights interface.
7. Wire control and remote control.
8. Auto warming up when the system is below zero degrees centigrade.
The left and the right installation of Intelligent Barrier
For the client convenience, the following figures are the left and the right installation
For the left installation, the housing installs on the left side of the door, and the arm stretches to the right, the boom is inside the door.
For the right installation, the housing installs on the right side of the door, and the arm stretches to the left, the boom is inside the door.
