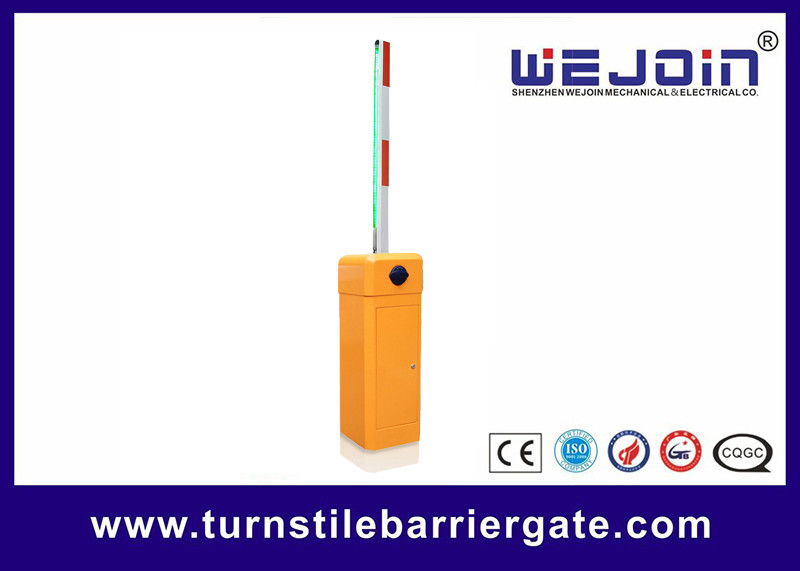

Parking barrier automatic boom barrier gate with manual advanced clutch
Barrier Gate Packing List
| Name | Specification | Quantity | Unit | Application |
| Hexagon screw | M12*70 | 2 | pcs | Fixing the arm |
| Boom pressboard | 1 | pc | ||
| Mounting batten | 2 | pcs | Fixing the cabinet | |
| Expansion screw | M16*150 | 4 | pcs | Fixing the cabinet |
| Support post | 1 | pc | Optional | |
| Expansion nut | M8 | 4 | pcs | Fixing the support post |
| Hexagon screw | M8*35 | 4 | pcs | Fixing the support post |
| Keys | 1 | pair | Barrier gate door | |
| Spare spring | 1 | pc | Spare use | |
| Remote controller | 2 | pcs | ||
| Manual | 1 | pc | ||
| RS485 Converter | 1 | pc | Optional | |
| Communication Module | 1 | pc | Optional |
Toll Gate The left and the right installation
For the client convenience, the following figures are the left and the right installation
For the left installation, the housing installs on the left side of the door, and the arm stretches to the right, the boom is inside the door.
For the right installation, the housing installs on the right side of the door, and the arm stretches to the left, the boom is inside the door.
Toll Barrier Series and Data
1. DZ-1XX/A --slow speed straight boom
Boom length L≤4.5m
Operating time: 6s
Center vertical high: 0.83m
2. DZ-1XX/B--slow speed straight boom
Boom length L≤4.5m
Operating time: 3s
Center vertical high: 0.83m
3. DZ-1XX/C1— 90-degree articulating boom
Boom length L≤5m
Operating time: 6s
Center vertical high: 0.83m
4. DZ-1XX/C2— 180-degree folding boom
Boom length L≤5m
Operating time: 6s
Center vertical high: 0.83m
