6 meter Traffic Barrier parking gate arms Car Management Systems 80W
Quick Detail:
1. Name: Bi-directional Barrier Gate
2. Application : Highway toll
3. Speed:3/6 second
4. Feature: Manual release
5. Rated Power:80W
6. Certificate: CE, ISO,
7. Net Weight: 60KG
8. Voltage: AC220V, AC110V
Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WJDZ30116 |
Straight boom |
6m |
6 seconds |
|
WJDZ30113 |
Straight boom |
4.5m |
3 seconds |
|
WJDZ30126 |
90 degree, Articulated boom |
5m |
6 seconds |
|
WJDZ30123 |
90 degree, Articulated boom |
3m |
3 seconds |
|
WJDZ30136 |
180 degree, Articulated boom |
5m |
6 seconds |
|
WJDZ30133 |
180 degree, Articulated boom |
3m |
3 seconds |
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
Applications:
Bi-directional Barrier Gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can work with parking system very well, and can be used in door and outdoor.
Specifications
|
Model |
WJDZ102 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
60kgs |
|
Speed |
3S, 6S |
|
Max boom length |
6 meters |
Why to choose WEJOIN Bi-directional Barrier Gate?
1. Bi-directional Barrier Gate solves the problem of left-installed and right-installed. Due to the same appearance of the two sides of the housing, it can be installed on both side of the gate.
2. Bi-directional Barrier Gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

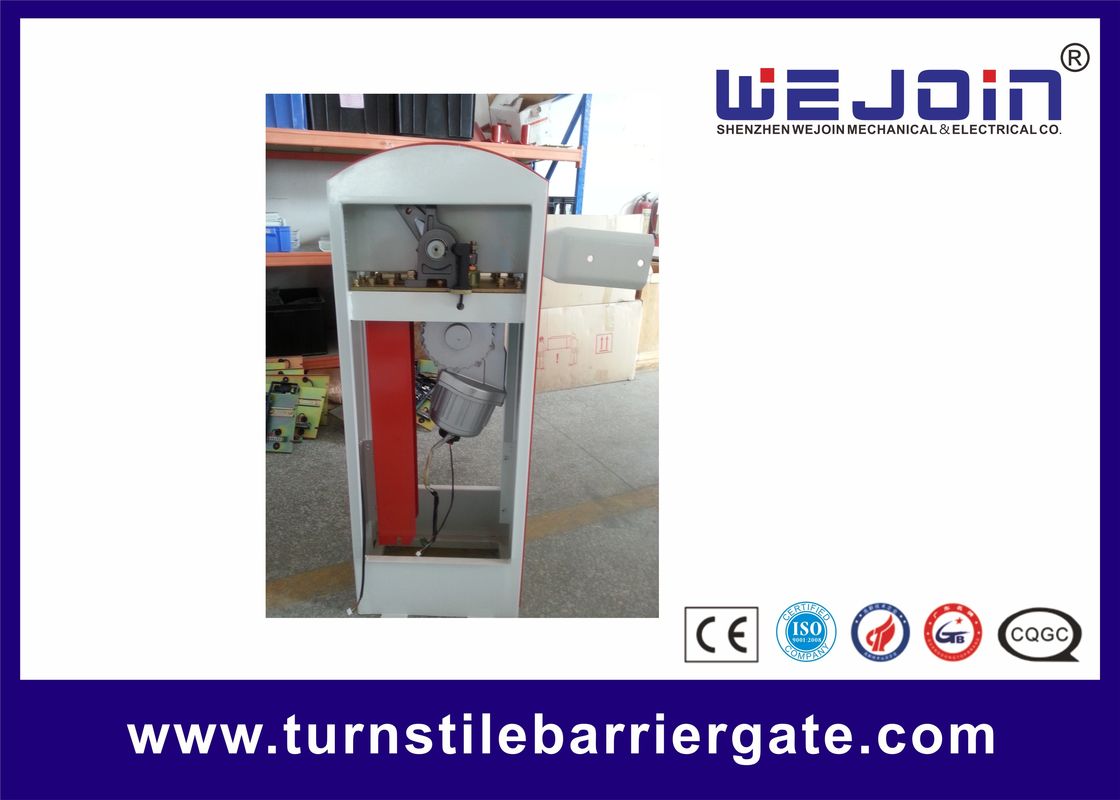

3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
