Waist High Speed Gate Systems Retractable Flap Barrier Turnstile For Bus Station
Functions and Features:

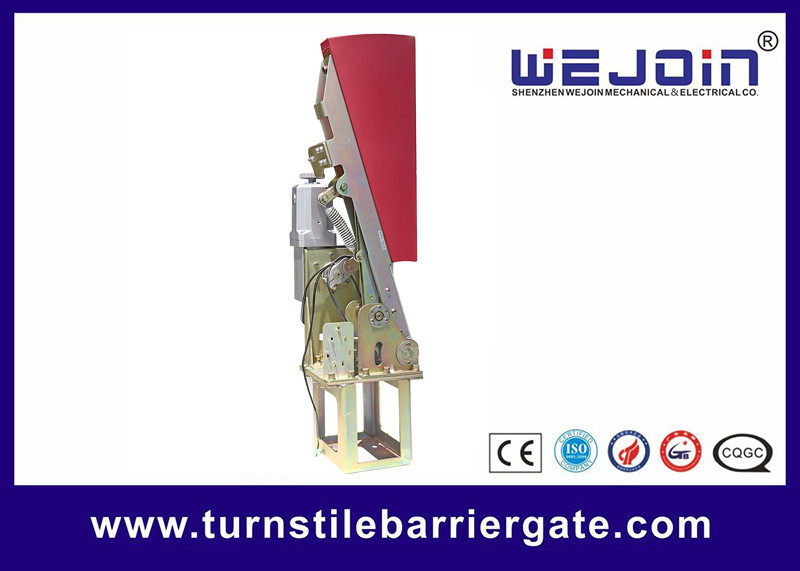

The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.
Malfunction self-detection. Which is easy for operation and maintenance.
Flap work synchronously.
Flap auto reversing when meeting exterior force.
Audible and visual alarm in case of unauthorized access.
Auti-reverse passing
Operational mode can be set up through the built-in menu on the control board.
Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.
Flaps open when power off, and auto-close when power on.
Compatible with diverse access control devices.
Pedestrian flow directions can be single or double directions.
Available for two-way traffic lights, which can prompt the state---pass or no-entry.
RS232 and LAN sockets are available to connect the computer.
Main Technical Specifications:
1)Material: SS304,thickness is no less than 1.5mm
2)Motor Material: steel and aluminum alloy
3)Gate Opening and Closing time:1S
4)Passing Speed: 30~40persons/min
5)Power: AC220C±10V,AC110C±10V
6)Motor: DC Brushless Motor, 24V
7) Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
8) Infrared Sensors: 8 Pairs
9) Relative Humidity: <95%, No Densation
10) Operating Temperature: -25°C-50°C
11) Working environment: indoor and outdoor(added the rain-shed)
12) Protection Grade: IP32
Applications:
High class communities, intelligent buildings, hotels, subway stations and other high level venues.
