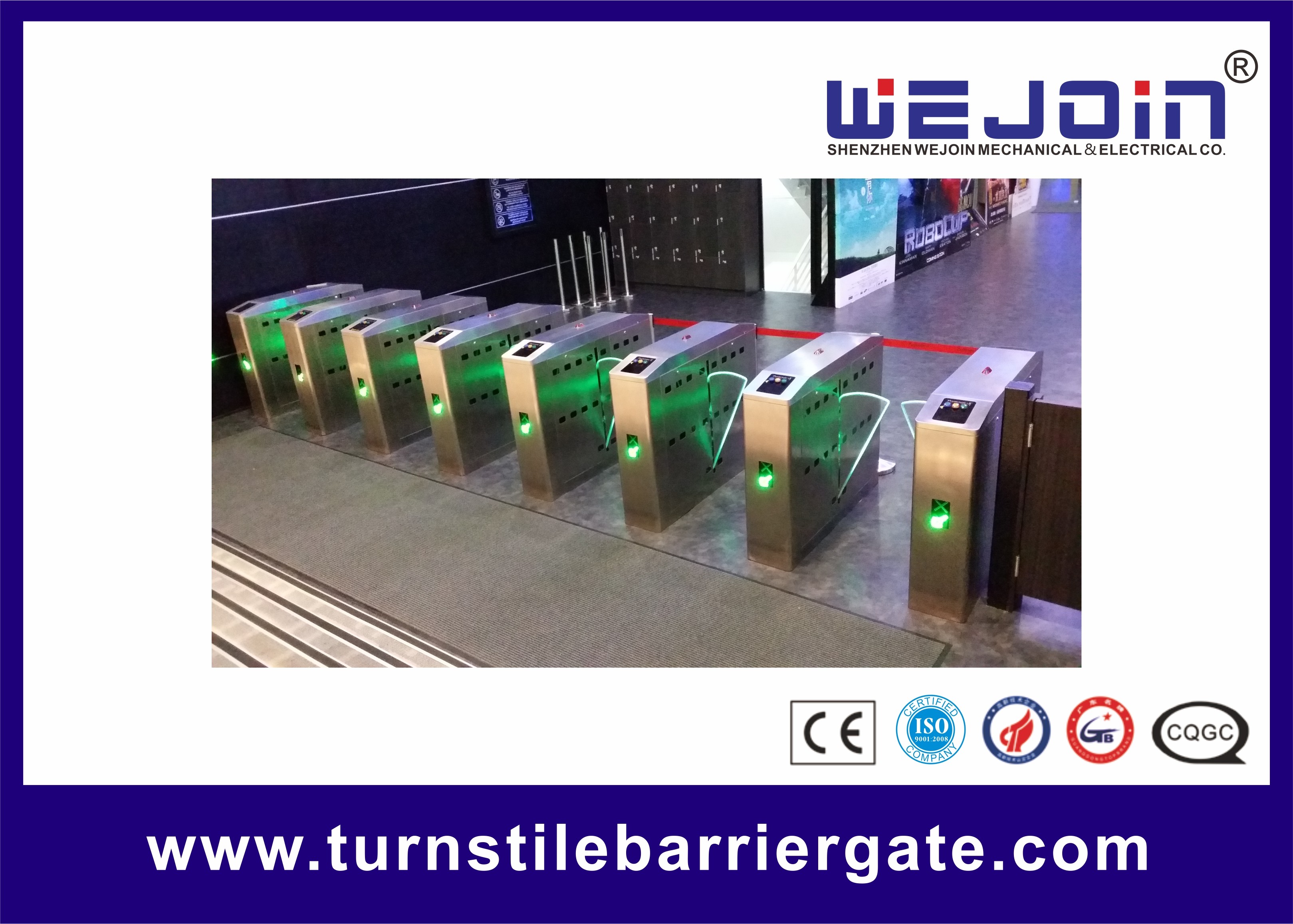

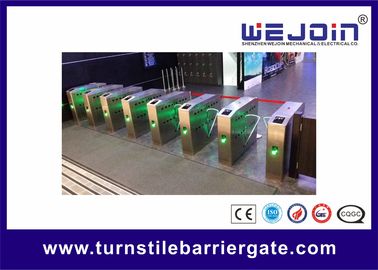

DC 24V Subway Metro Flap Barrier Gate Controlled Access Turnstiles
Flap Barrier Gate Main Functions and Features of the System:
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
4 With direction indication, guiding passenger to entry and exit
5) Self automatic locking to prevent forcedly passing without the card
6) Light and sound alarm indication function, preventing illegal entry or irregular passing
7)To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
8) Setting function humanized for reset of over time passing.
9)The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
10) The processing mode in emergency or in special conditions.
11) Resetting automatically. After reading card, if the passer didn’t pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.
Flap Barrier Gate Main Technical Specifications:
1)Material: SS304,thickness is no less than 1.5mm
2)Barrier Material: Acrylic glass, PVC and so on
3)Gate Opening and Closing time:0.5S
4)Passing Speed: 30~40persons/min
5)Power: AC220C±10V,AC110C±10V
6)Motor: DC Brushless Motor, 12V
7) Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
8) Infrared Sensors: 8 Pairs
9) Relative Humidity: <95%, No Densation
10) Operating Temperature: -25°C-50°C
11) Working environment: indoor and outdoor(added the rain-shed)
12) Protection Grade: IP32
Flap Barrier Gate Products Series:
| Model Item |
WJTY201 | WJTY301 | WJTY311 |
| Material of Housing | 304 Stainless Steel | ||
| Material of Flap Door | Organic Glass, Resin, or PVC | ||
| Dimension of housing | 1200*270*1000 | 1450*315*1020 | 1400*305*1020 |
| Thickness of housing | 1.5mm | ||
| Max Width of Passage | 600 | 900 | 900 |
| Net weight | 70kg | 140 kg | 85 kg |
| Normal Life Span | 3 millions times | ||
| Communication Interface | Standard RS485(distance less than 1200 meters) | ||
| Transit speed | 30-40 persons/min | ||
| Power supply | 220V±10%, 110± 10% | ||
| Frequency | 50/60HZ | ||
| Working voltage of motor | DC24V | ||
| Time for opening or closing | 1s | ||
| Starting time after power on | 3s | ||
| Input interface | Dry contact signal or +12Vor pulse signal with width more than 100ms DC12V |
||
| Transit speed | 25~32 persons/min | ||
| Working temperature | -10°C~50°C | ||
| Working environment | Indoor / Outdoor (Shelter) | ||
| Relative humidity | ≤95%, no condensation | ||
