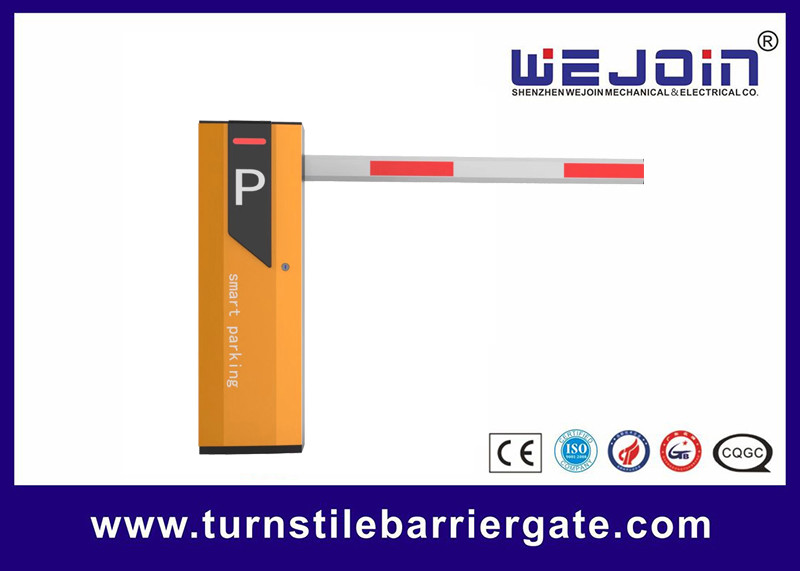

High Speed Vehicle Control Barrier for Car Park With Motor Cooling Fan
Quick Detail:
Description:
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZE50D | Straight boom | 4.5m | 3 seconds |
| WJDZE50D | Straight boom | 3m2 | 2 second |
| WJDZE50D | 90 degree, Articulated boom | 4m | 6 seconds |
| WJDZE50D | 180 degree, Articulated boom | 4m | 6 seconds |
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Reversing on obstacle
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
Applications:
Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirement . It can be used for parking system, factory gate,bus station and so on.
Specifications
| Model | WJDZE50D |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 180W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Max boom length | 4.5m |
| Speed | 3s,6s |
| Net weight | 60kgs |
Why to choose WEJOIN Traffic Parking Boom Barrier Gate?
1. Automatic Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirements. It can be used for vehicle parking system, factory gate,bus station and so on
2. Automatic Boom Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.
3. Automatic Parking Boom Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate reversing on obstacle. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Maintenance
1. Keep the barrier gate clean.
2. Check the joints every month in case of any loose parts.
3. Check the easily worn-out parts every half year and renew it.
4. Remote control distance will be shortened or not work in cases like big object screening, battery exhausting, extreme weathers.
