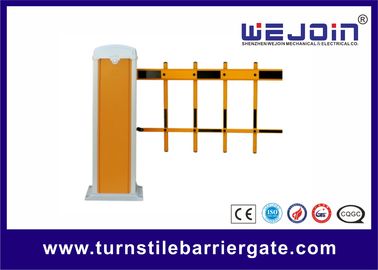

Fashionable Auto Electronic Barrier Gates / Vehicle Access Control Barriers
Electronic Barrier Gates Quick Detail:
(1) Name: Bi-directional Barrier Gate
(2) Application : Parking System
(3) Speed: 3/6 second
(4) Feature: Manual release
(5) Rated Power: 80W
(6) Certificate:CE, ISO,
(7) Net Weight:60KG
(8) Voltage: AC220V, AC110V
Electronic Barrier Gates Description:
Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WJDZ60116 |
Straight boom |
4.5m |
6 seconds |
|
WJDZ60113 |
Straight boom |
4m |
3 seconds |
|
WJDZ60126 |
90 degree, Articulated boom |
4m |
6 seconds |
|
WJDZ60123 |
90 degree, Articulated boom |
3m |
3 seconds |
|
WJDZ60136 |
180 degree, Articulated boom |
4m |
6 seconds |
|
WJDZ60133 |
180 degree, Articulated boom |
3m |
3 seconds |
|
WJDZ60146 |
Two-level, fence boom |
3.5m |
6 seconds |
|
WJDZ60156 |
Three-level, fence boom |
3m |
6 seconds |
Electronic Barrier Gates Functions & Features:
1. No need to change the balance spring when changing the booms
2. Boom can rise and fall on left/right side by setting on the same machine
3 Advanced manual release
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
Why to choose WEJOIN Bi-directional Barrier Gate?
Barrier Gate with aluminum alloy housing is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive. Compact design of machine core adopts big reduction ratio technology, realizes machine core more compact and smart looking. Unique transformed boom can rise and fall on left/right sides under the direction. Just need one standard of balance spring can suit to all length of the booms, no need to change the spring.
