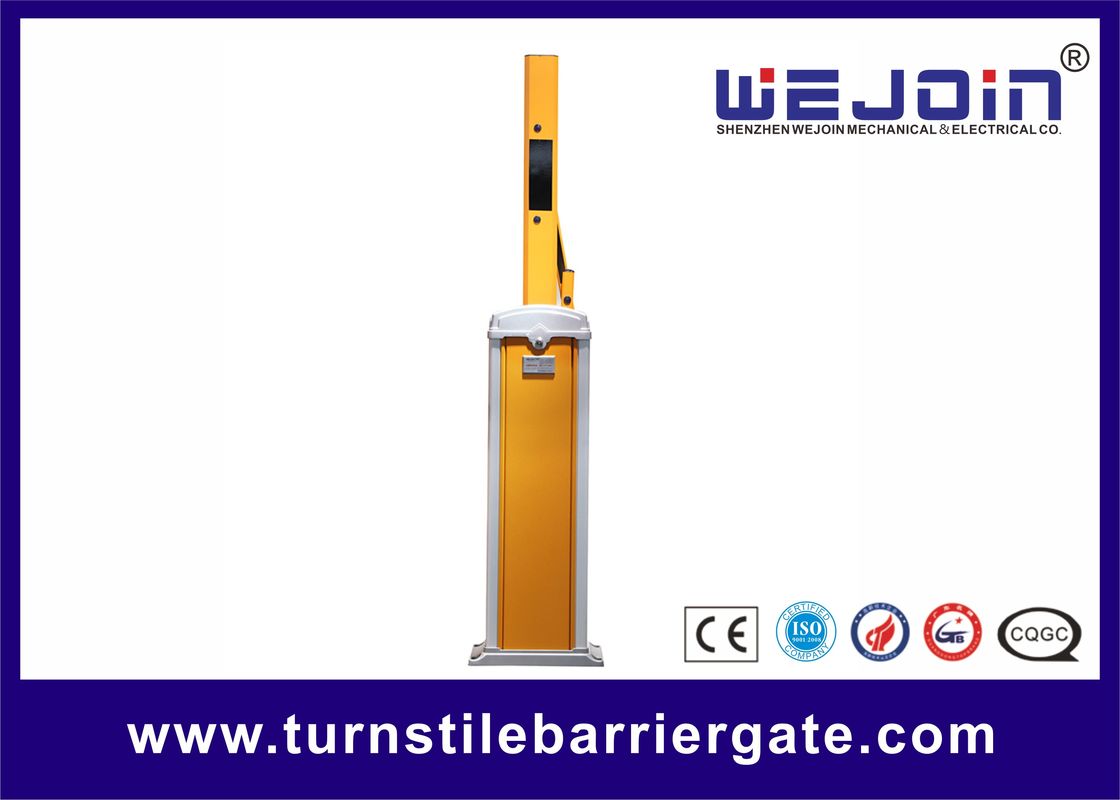

Intelligent Barrier Gate With Folding Boom and Anti-bumping Functions
Quick Detail:
(1) Name: Bi-directional Barrier Gate
(2) Application : Parking System
(3) Speed:3/6 second
(4) Feature: Manual release
(5) Rated Power:80W
(6) Certificate:CE, ISO,
(7) Net Weight: 60KG
(8) Voltage: AC220V, AC110V
Description:
Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WJDZ60116 |
Straight boom |
4.5m |
6 seconds |
|
WJDZ60113 |
Straight boom |
4m |
3 seconds |
|
WJDZ60126 |
90 degree, Articulated boom |
4m |
6 seconds |
|
WJDZ60123 |
90 degree, Articulated boom |
3m |
3 seconds |
|
WJDZ60136 |
180 degree, Articulated boom |
4m |
6 seconds |
|
WJDZ60133 |
180 degree, Articulated boom |
3m |
3 seconds |
|
WJDZ60146 |
Two-level, fence boom |
3.5m |
6 seconds |
|
WJDZ60156 |
Three-level, fence boom |
3m |
6 seconds |
Functions & Features:
1. No need to change the balance spring when changing the booms
2. Boom can rise and fall on left/right side by setting on the same machine
3 Advanced manual release
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
Applications:
Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.
Specifications
|
Model |
WJDZ601 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
120W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
35kgs |
|
Speed |
3S, 6S |
|
Max boom length |
6 meters |
