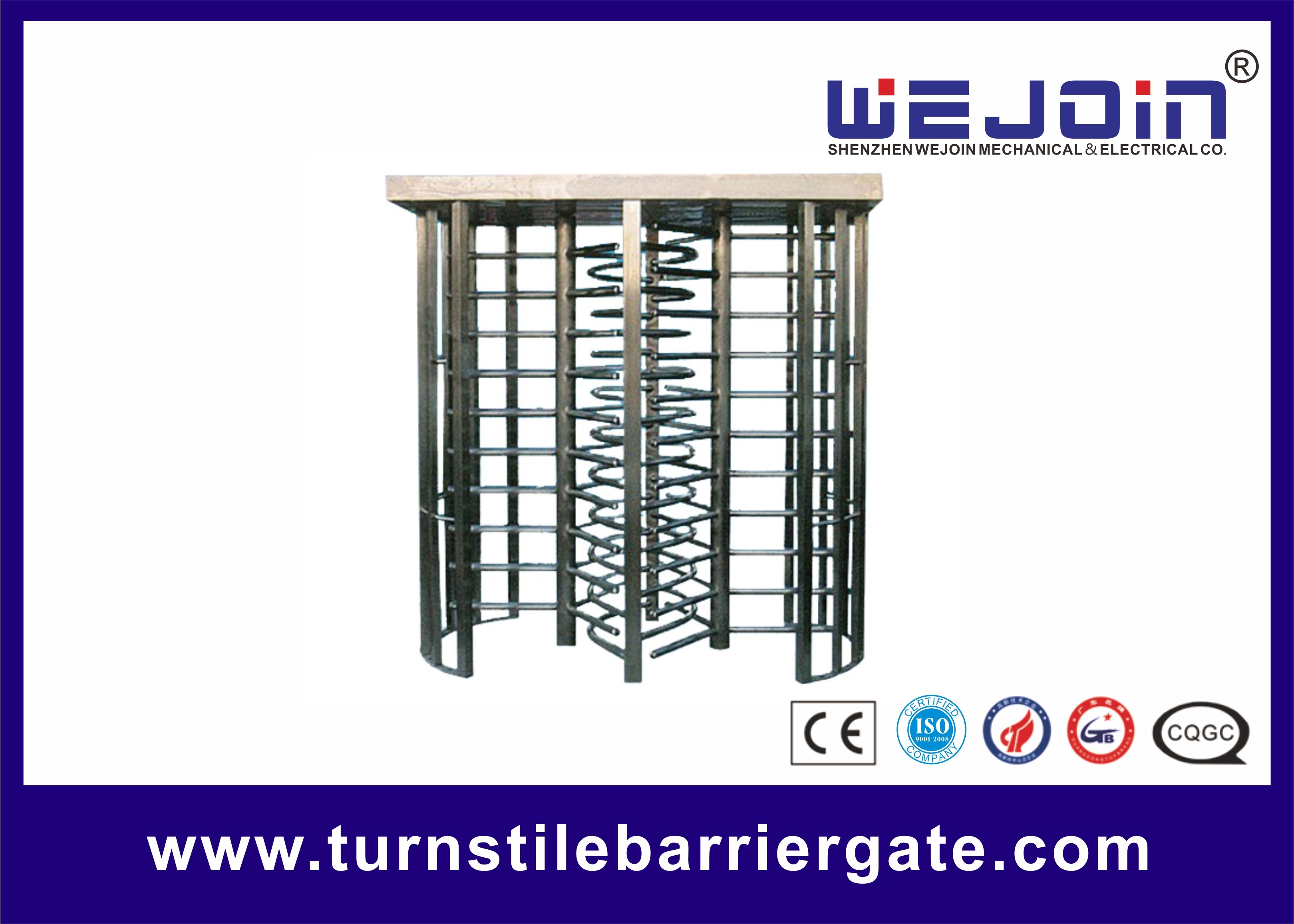

Subway , Metro Turnstile Entry Systems / Stainless Steel Controlled Access Turnstiles
Description:
1)The entire system runs smoothly, with a small noise and free of mechanical impact.The system adopts the exclusive technique of. double cam
As a result, the turnstile is more accurate and reliable for zero point locking and unlocking.
2)DC Brushless Motor, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4it is provided with multiple operation modes for selection. It can either read card in double way for flow limit,
or reading card in a way while barring in the other, or read card in a way while free passage in the other.
More over, the operation mode of turnstile may be set up with the built-in small keyboard.
5)It has automatic function of opening or closing when power off.
6The equipment is provided with a unified, standard electric interface and is available to be integrated with various read/write facilities to facilitate the system integration.
It is able to realize far end control and management with the help of administrative computer.
7)It has a function of reading card with or without memory, and it may be set up with the built in small keyboard in accordance with the requirements of the users.
8) Counting the passing people number automaticity, and with LED display
9) Direction indicator function, showing passing or prohibiting for the people
10) Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing force;the locking time can be setted, and unlocked by the card.
11) Prohibiting illegal passing, the turnstile without the card, the locking time can be setted, and unlocked by the card.
12) Antihit against function when the turnstile touch the passing people, it will stop and after several seconds, it will turn again.
13) Self resetting function the system will cancel the people passing right when reading the card but not passing, the time can be setted.
Specifications:
| Model | WJFT601 | WJFT602 | WJFT610 | WJFT611 |
| Item | ||||
| Material of Housing | 201 / 304 Stainless Steel | |||
| Thickness of Housing | 2.00mm | |||
| Dimension of Housing | 1630×1500×2300 | 1400× | 2800× | 2150× |
| (L×W×H mm) | 1200×2300 | 1813×2400 | 1260×2300 | |
| Length of Pole | 610mm | 470mm | 610mm | 470mm |
| (out of framework) | ||||
| Net Weight | 170kg | 250kg | 650kg | 560kg |
| Max Load-bearing of Pole | 80kg | 30kg | 80kg | 30kg |
| Driving Force of Pole | 3kg | |||
| Produce Processing | Laser cutting fully controlled by computer | |||
| Power Supply | 220V±10%, 110V±10% | |||
| Frequency | 50/60HZ | |||
| Transmission of Pole | Digital Transmission | |||
| Light Indicator | Direction indicating | |||
| Rotating Direction | Single Direction, Double Direction (optional) | |||
| Time for Opening | 0.2 second | |||
| Communication Interface | Standard RS485 (distance less than 1200 meters) | |||
| Input Interface | Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V | |||
| Transit Speed | 30~40 persons/min | |||
| Working Environment | Indoor / Outdoor (Shelter) | |||
| Working Temperature | -10°C~50°C | |||
| Relative Humidity | ≤90%, no condensation | |||
