Intelligent Automatic Barrier Gate For Parking System With LED Boom
Quick Detail:
Name: Bi-directional Barrier Gate
Application : Parking System
Speed:0.6-1second
Rated Power:240W
Certificate:CE, ISO,
Net Weight:50KG
Voltage:AC220V, AC110V
Description:
Model Selection and Differences
|
Model |
CB02 |
|
Opening Time |
3S |
|
Boom Type |
Round Carbon Fiber |
|
Boom Length |
3-4M |
|
Voltage |
110V/220V |
|
Motor/Power |
DC/240W |
|
Working Temperature |
-35℃ - 75℃ |
|
Protection Grade |
IP54 |
|
Remote Control Distance |
30M~100M |
Applications:

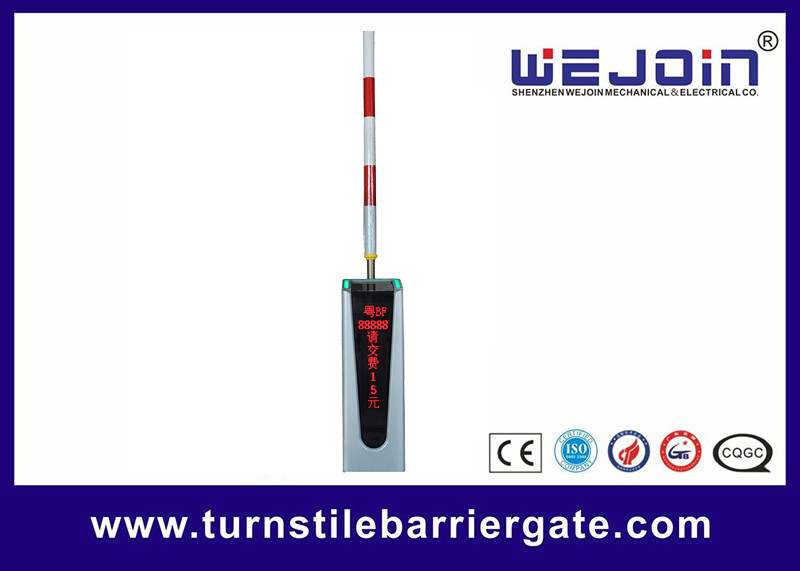

Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.
Functions & Features:
1. Self-developed DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.
2. Boom can rise and fall on left/right side by setting on the same machine, No need to change the balance spring when changing the booms.
3. DC variable-frequency control system, precise control, more flexible running, less mechanical impact and longer service life.
4. Supports the infrared photocell for anti-bumping function (optional)
5. Supports the external and internal vehicle loop detector (optional)
6. Auto closing
7. RS485 communication module (optional)
8. Thermal radiates rapidly, no thermal protection
9. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
10. Special art and craft makes out the most modernized and fashionable housing
