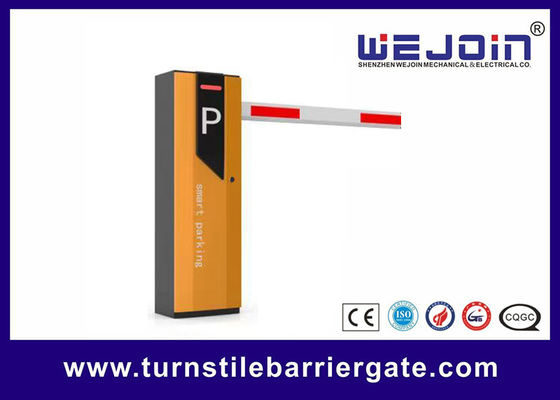

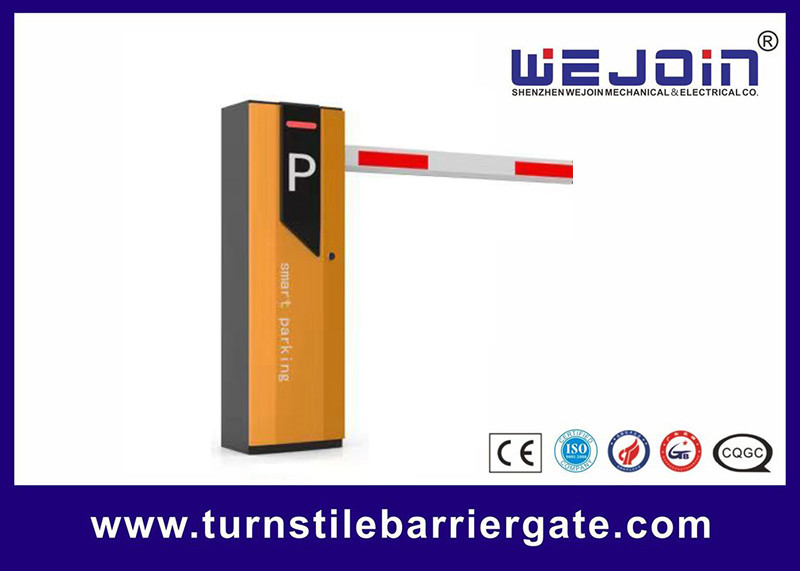

Automatic Car Parking Management Systems Non-Spring Barrier Gate

Automatic Car Parking Management Systems Non-spring Barrier Gate

Quick Detail:

• Name: non-spring barrier gate
• Application: hospital gate
• Speed;3/6 second
• Feature; no spring
• Rated Power;180W
• Voltage;AC220V, AC110V
• Certificate; CE, ISO,
• Net Weight;60KG

Model Selection and Differences

Functions & Features:

1. No spring design, eliminating the need for mechanical leveling, maintenance-free.

2. The boom will not fall off when power off, high safety.

3. Minimal operation, the direction can be exchanged in 30 seconds.

4. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.

5. The perfect combination of worm gear and gear is reliable.

Applications:

Vehicle Barrier Gate uses the non spring motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can work with parking system very well, and can be used in door and outdoor.

Specifications

Why to choose WEJOIN Compression spring barrier gate?

1. 1. Compression spring barrier gate solves the problem of left-installed and right-installed. Due to the same appearance of the two sides of the housing, it can be installed on both side of the gate.
2. 2. Compression spring barrier gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. 3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.
4. 4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.

Communication with customers

Q: What's WEJOIN monthly production capacity for barrier gate?

A: 10000 units.

Q: How it to solve the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.

Q:If the user changes a new control board and the boom is abnormal when rising and falling,why?

A: Please adjust the "Gate Type Selection"(Refer to the control board)

Q: Why the boom could not rise up or falldown to the end?

A: 1)When change a long boom to a short one,please readjust it

    2)The sensor dose not plug well,please check it

    3)The"Speed adjust switch" is wrong adjust,please readjust it
