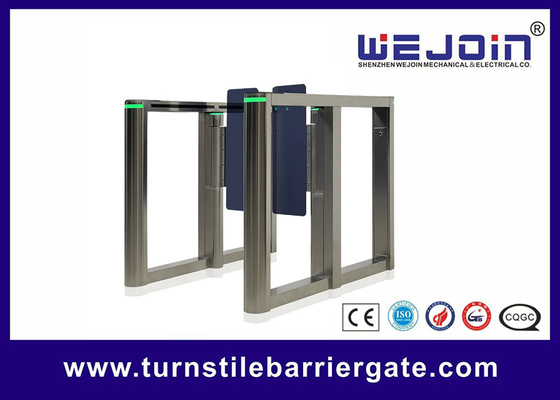

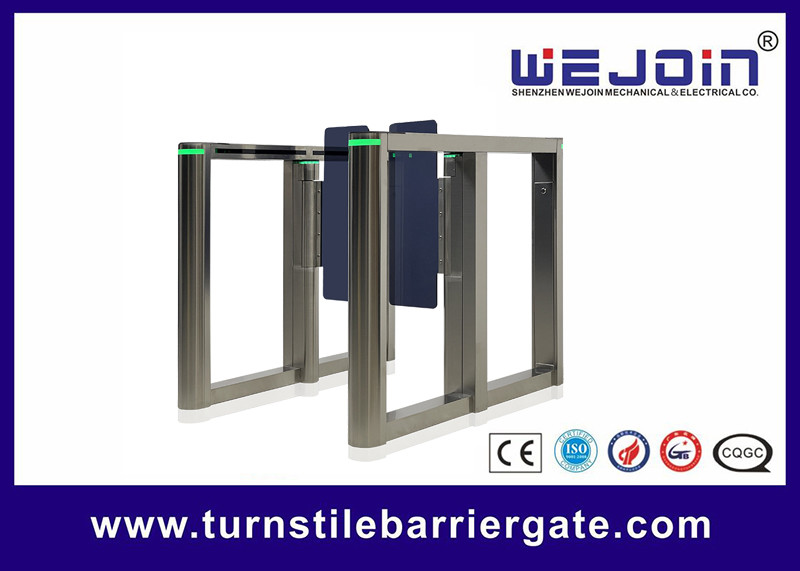

CE Certificate Half Height Turnstile Gate Security Swing Barrier SS304
CE certificate half height turnstile gate security swing barrier gate
Swing Barrier Introduction
The system adopts servo control technology, detects the motor position in real-time, self-learns the load curve, has physical anti-pinch protection, and sensitivity can be adjustable; Supports access mode settings such as card reader, free, and forbidden at entrances and exits; It has access logic detection such as illegal intrusion, trailing passing, detention, reverse passing, and infrared anti-pinch.
Swing Barrier Gate Working Environment Parameters
|
Working Temperature |
-20℃ ~ 55℃ |
|
input Voltage of Power Supply |
AC110/220V±10% |
|
Input Voltage of Controller |
DC24V |
|
Motor Power |
50W |
|
Relative Humidity |
90% (no condensation) |
Speed Gate Main Features and functions
1. Opening & Closing Speed can be adjustable.
2. RS232 communication, support Modbus protocol.
3. Opening when power off, DC12V backup battery optional.
4. Support voice function, trumpet optional.
Swing Turnstile Normally opening Mode
Long press the card reader button for 5S or continuously connect the card reader signal port GND 5S, the swing barrier will enter the normally open mode (for the LO signal 5S is the exit normally open mode, and the RO signal 5S is the enter normally open mode). At this time, the swing barrier is opened (infrared judgment is invalid), the light is displayed green, and the buzzer and trumpet have no output. The signal is canceled, the swing barrier is closed, and the previous state is restored.
