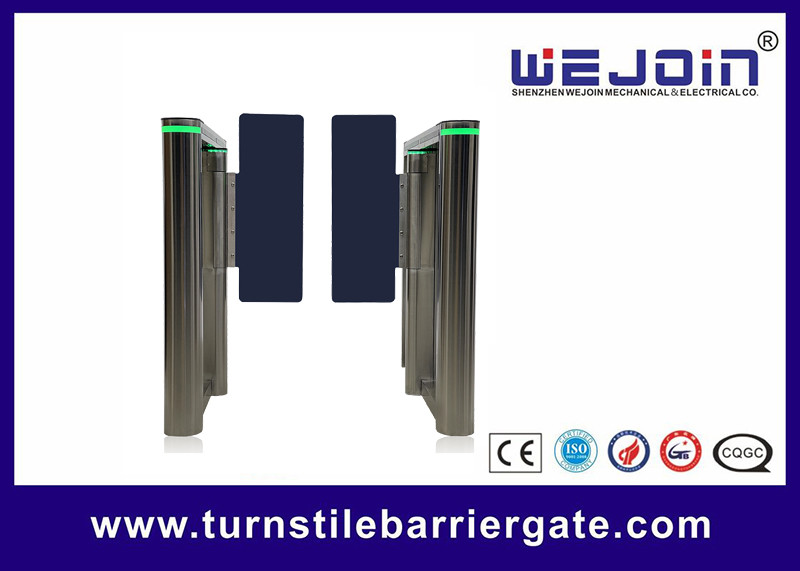

Airport Supermarket Automatic Swing Barrier Gate DC24V Double Direction
Pedestrian Security Supermarket Automatic Barrier Electric Swing Gate
Swing Barrier Gate Specifications
|
Item |
Swing Barrier Mechanism |
|
Working Temperature |
-20℃ ~ 55℃ |
|
input Voltage of Power Supply |
AC110/220V±10% |
|
Input Voltage of Controller |
DC24V |
|
Motor Power |
50W |
|
Relative Humidity |
90% (no condensation) |
|
Swing Direction |
double direction or single |
Swing Barrier Profile
1. The system adopts servo control technology, detects the motor position in real-time, self-learns the load curve, has physical anti-pinch protection, and sensitivity can be adjustable;
2. Supports access mode settings such as card reader, free, and forbidden at entrances and exits;
3. It has access logic detection such as illegal intrusion, trailing passing, detention, reverse passing, and infrared anti-pinch.
Speed Gate Main Features
1. Adopting a self-developed tubular two-stage planetary gear reducer structure, driven by DC permanent magnet motor, it has special dynamic characteristics such as compact structure, large torque, low noise, and wear resistance.
2. Adopting a self-developed servo control system, for precise control, more flexible running, less mechanical impact, and longer service life.
3. Using frequency conversion technology, which realizes running speed adjustment, to meet different access requirements and have a better experience.
4. Fast and stable operation, the fastest opening speed can reach 0.2 seconds.
5. Opening & Closing Speed can be adjustable.
6. RS232 communication, support Modbus protocol.
7. Opening when power off, DC12V backup battery optional.
8. Support voice function, trumpet optional.
