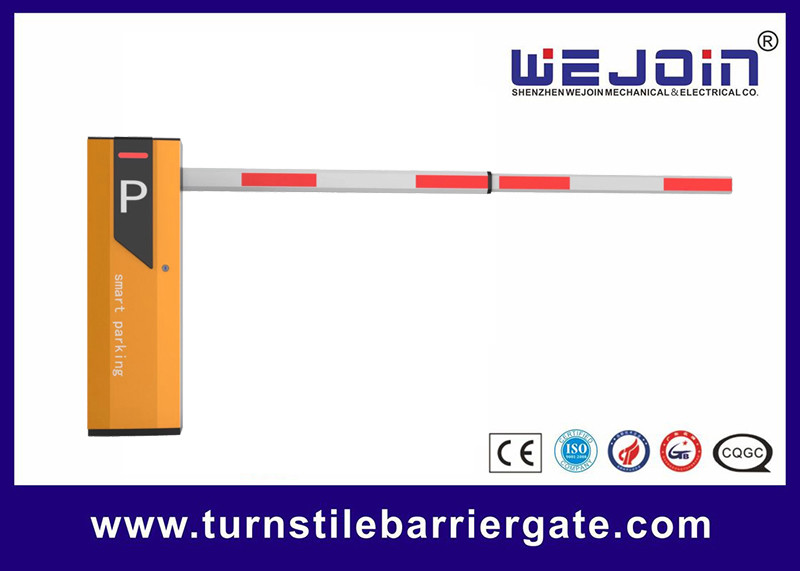

Fashionable Auto Electronic Barrier Gates / vehicle access control barriers
Brief Introduction
The product consists of five parts: cabinet cap, cabinet body, transmission mechanism, control unit, and boom. It distinguishes between left and right machines and is used in parking lot entrance and exit control systems.
Quick Detail:
(1) Name: Bi-directional Barrier Gate
(2) Application : Parking System
(3) Speed: 3/6 second
(4) Feature: Manual release
(5) Rated Power: 180W
(6) Certificate:CE, ISO,
(7) Net Weight:60KG
(8) Voltage: AC220V, AC110V
Description:
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZE7A | Straight boom | 4.5m | 6 seconds |
| WJDZE7A | Straight boom | 4m | 3 seconds |
| WJDZE7A | 90 degree, Articulated boom | 4m | 6 seconds |
| WJDZE7A | 90 degree, Articulated boom | 3m | 3 seconds |
| WJDZE7A | 180 degree, Articulated boom | 4m | 6 seconds |
| WJDZE7A | 180 degree, Articulated boom | 3m | 3 seconds |
Functions & Features:
1. No spring design, eliminating the need for mechanical leveling, maintenance-free.
2. The boom will not fall off when power off, high safety.
3. Minimal operation, the direction can be exchanged in 30 seconds.
4. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
5. The perfect combination of worm gear and gear is reliable.
Applications:
Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.
Specifications
| Model | WJDZE7A |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 180W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 35kgs |
| Speed | 3S, 6S |
| Max boom length | 4.5 meters |
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
