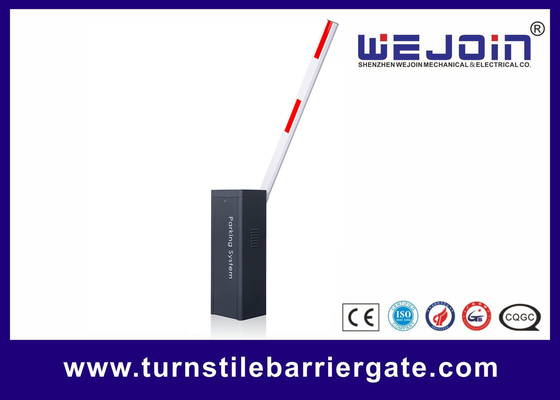

Automatic Electronic Vehicle Barrier Gate Arm For Parking System
Brief Introduction
The WJDZJ intelligent barrier gate is one types of our company’s products with the latest technological design to realize the automatic and intelligent operation. Further more, the unique clutch device and the balance device has made the barrier gate become more reliable.
Description:
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZJ | Straight boom | 4.5m | 6 seconds |
| WJDZJ | Straight boom | 4m | 3 seconds |
| WJDZJ | 90 degree, Articulated boom | 4m | 6 seconds |
| WJDZJ | 90 degree, Articulated boom | 3m | 3 seconds |
| WJDZJ | 180 degree, Articulated boom | 4m | 6 seconds |
| WJDZJ | 180 degree, Articulated boom | 3m | 3 seconds |
| WJDZJ | Two-level, fence boom | 3.5m | 6 seconds |
| WJDZJ | Three-level, fence boom | 3m | 6 seconds |
Functions & Features:
1. Auto closing
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Advanced manual release
8. RS485 communication module (optional)
9. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
10. Thermal radiates rapidly, no thermal protection
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
Specifications
| Model | WJDZJ |
| Working Temperature | -35℃～+75℃ |
| Voltage | 220V/ 110V±10%, 50/60HZ |
| Rated power | 120W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 35kgs |
| Speed | 3S, 6S |
| Max boom length | 6 m |
Why to choose WEJOIN Automatic Electronic Construction Vehicle Barrier Gate?
1. Barrier Gate is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive. Compact design of machine core adopts big reduction ratio technology, come true machine core more compact and smart appearance. Unique transformed boom can rise and fall on left/right sides under the direction. Only need one standard of balance spring can suit to all length of the booms, no need to change the spring.
2. Barrier Gate uses the third generation motor. It is stable and has long service life performance,normal life span is one million times.
3. Special barrier core makes its installation direction adjustable. Also The barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, at the same time, we offer OEM service
