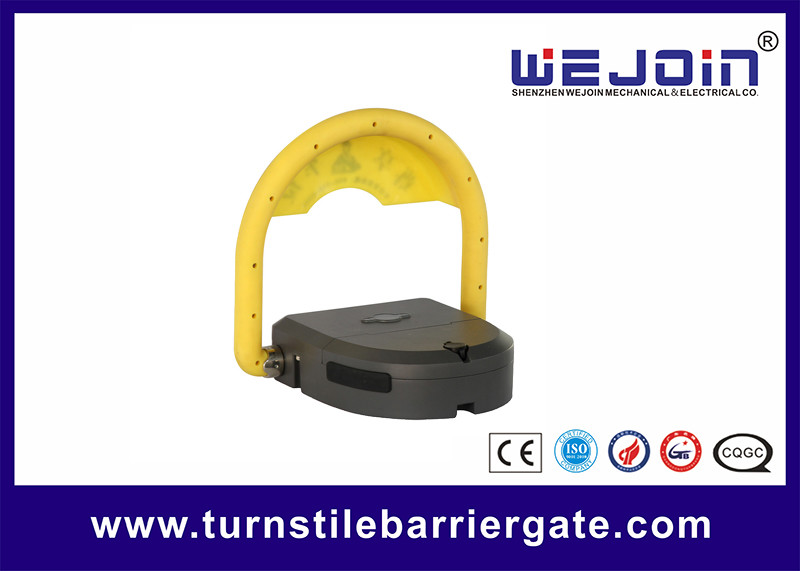

Heavy Duty Parking Lot Equipment Automatic Car Lock System With Remote Controller
Functions & Features:
1. Known brand battery to support a stable power supply.
2. Aviation plug and connector are used to avert a short-circuit and water incursion.
3. A high strength, anti-press aluminum-made housing is capable of sustaining a five-ton truck, so tough to
break and NEVER get rusty.
4. Wholly sealed design, with an IP grade 68 makes totally dustproof and waterproof realistic.
5. Long-distance remote control function.
6. Product installation simplified, four pre-drilled holes at the bottom of the cabinet makes it easy to install.
7. Energy-saving; the battery is the best product in China and the power in it will last for half a year.

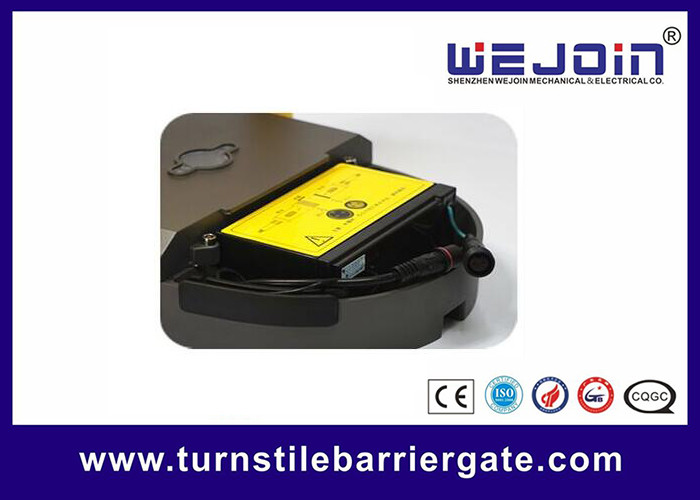

8. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing a short circuit; battery installation is easy.
9. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
10. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
11. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses a remote control to put it horizontally.
12. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
13. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without a key.
Specification:
Model |
WJCS101 |
Remote control distance |
≥30m |
Standard Voltage |
DC12V |
Working Temperature |
-35℃~+55℃ |
Vertical Position Height |
340mm |
Max Bearing Weight |
5 t |
Net weight |
9kgs |
Battery Voltage |
DC12V,7Ah |
Operational Current |
0.4A |
Protection Grade |
IP68 |
Dimension |
357*370*82.5mm |
Running Time |
4s~6s |
