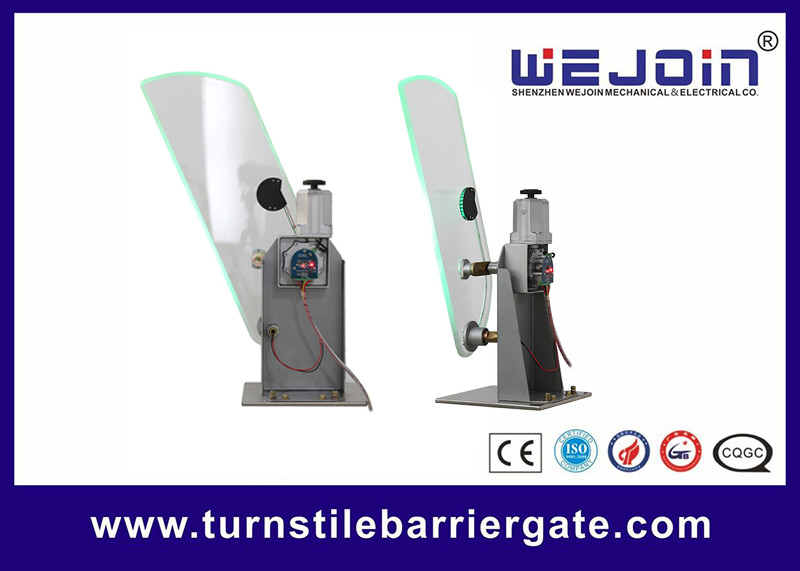

110V/220V stainless steel full-auto flap barrier access control
Description
Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.
Functions and Features
1. The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.
2. Malfunction self-detection. Which is easy for operation and maintenance.
3. Operational mode can be set up through the built-in menu on the control board.
4. Flap auto reversing when meeting exterior force.
5. Audible and visual alarm in case of unauthorized access.
6. Auti-collision function, the flap will stay close if not receiving the open signal.
7. Flap work synchronously.
8.Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.
9. Flaps open when power off, and auto-close when power on.
10. Compatible with diverse access control devices.
11. Pedestrian flow directions can be single or double directions.
12. Available for two-way traffic lights, which can prompt the state---pass or no-entry.
13. RS232 and LAN sockets are available to connect the computer.
Specifications
|
Model |
WJTY201 |
|
Cabinet dimension |
1400mm(L)×270mm(W)×1000mm(H) |
|
Stretching-out flap length |
275mm |
|
The max lane width |
900mm |
|
Cabinet material |
304 stainless steel |
|
Power supply |
AC220V±15%, AC110V±15% |
|
Motor voltage |
DC12V (brush motor) |
|
Access device input voltage |
dry contact or 12V electrical level signal or ＞100ms 12V impulse signal or driving current ＞10mA |
|
Max flow rate |
30~40 people per minute |
|
Flap opening/closing time |
0.5 sec |
|
reset time when power on |
3 sec |
|
protection grade |
IP32 |
|
working environment |
outdoors (with shelter) and indoors. |
|
working temperature |
-25°C~50°C |
