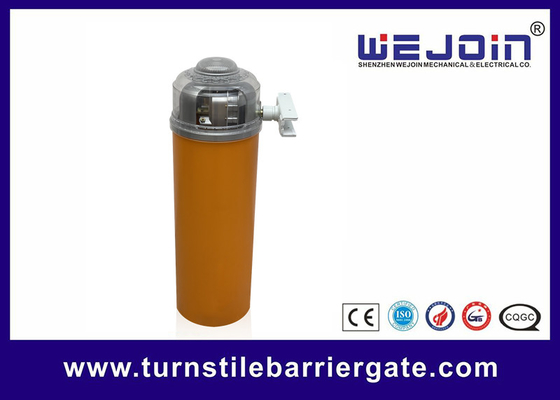

DC variable-frequency control system no-spring mechanism 3D parking barrier gate
3D Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2. Power supply input voltage: AC110±10%, AC220V±10%
3. Controller input voltage: DC24V±10%, 10A
4. Motor power: up and down power 180W; horizontal power 60W
5. Relative Humidity: 30%~80%, No condensation
6. Distance of remote control: L≥30M
7. Running Speed: 0.3 seconds MAX
8. MTBF: 8,000,000 times
Barrier Gate Maintenance
|
Name |
Specification |
Quantity |
Unit |
Application |
|
Screw, Nut, Plastic Cover |
M8*10 |
1 |
sets |
Fixing the boom |
|
Expansion Screws |
M16*150 |
4 |
sets |
Fixing the cabinet |
|
Support Post |
|
1 |
pc |
Optional |
|
Radio Emitter |
|
1 |
pcs |
Optional |
|
Keys |
|
2 |
pcs |
For cabinet door |
|
Remote Controller |
|
2 |
pcs |
|
|
Manual |
|
1 |
pcs |
|
Parking barrier Common Malfunctions and Solutions
Malfunction Phenomenon:The LED digital tube of the slave motor displays IdLE
Possible Causes:
1.The slave motor sensor plug is not plugged in or the wire is loose;
2. Slave motor sensor failure
Solution:
1. Check the slave motor sensor plug
2. Replace the slave motor
Malfunction Phenomenon:LED Prompt: motor sensor is not detected
Possible Causes:
1.The main motor sensor plug is not plugged in or the wire is loose
2. Main motor sensor failure
Solution:
1. Check the main motor senor plug, and plug well
2. Replace the main motor
