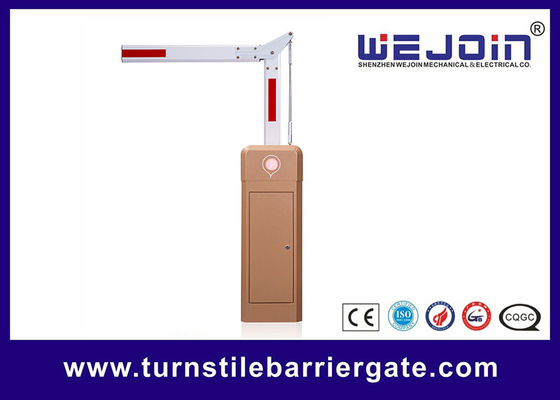

CB01VF-I 2~6S Running Speed Adjustable 90゜Folding Arm Parking Barrier Gate
Barrier Gate Technical Data
|
Model |
CB01VF-I |
||||
|
Running Speed (Seconds: S) |
2~6 S |
6 S |
6 S |
6 S |
6 S |
|
Boom Type |
Straight |
90゜Folding |
180゜Folding |
2 Fence |
3 Fence |
|
Max Boom Length (Meters: M) |
4M~8M |
5M |
4M |
4.5M |
4M |
|
Cabinet Dimension (W*D*H) |
329*286*935MM, 335*315*967.2MM |
||||
|
Power Supply Input Voltage |
AC220V±10%, AC110V±10% |
||||
|
Motor Voltage |
DC24V |
||||
|
Enclosure Rating |
IP54 |
||||
|
Working Temperature |
-35℃~ + 70℃ |
||||
|
MTBF |
6,000,000 times |
||||
|
Duty Cycle |
100% |
||||
|
Traffic Flow Application |
24 hours uninterrupted operation |
||||
|
Max Motor Power |
180W |
||||
|
Max Motor Speed |
30r/min |
||||
|
Max Torque |
300N.m |
||||
Vehicle Barrier Gate Functions and Features:
1. DC frequency conversion control motor drive, with a rod drive mechanism, balance spring, stable and reliable operation, the motor life of up to 6 million times or more.
2. The whole series is equipped with standard rebound function, when the boom is blocked in the process of falling, it will automatically rebound.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barrier gates through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Interchangeable left and right direction.
Straight boom installation
Step 1. Fix the boom holder press board on boom with 2pcs of M12*70mm hexagon screw.
Step 2. Press the board by hand, then lift up the boom vertically and install it on the boom holder.
Step 3. Install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.
