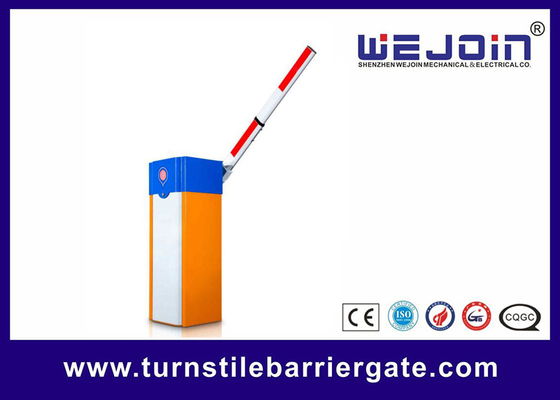

Reliable Parking Barrier Delay Auto-closing Function car park boom gates
Vehicle Barrier Gate Feature and Function
1. DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.
2. DC variable-frequency control system, precise control, more flexible running, less mechanical impact and longer service life.
3. Large LCD screen display, English visual menu, simple maintenance and easy operation.
4. Turn the handwheel or lift the boom manually to realize the boom up and down, and it can also be powered by a DC24V battery, or open one time by a super capacitor backup.
5. Left-installation and right-installation can be changed.
Barrier Gate Technical Data
| Model | CB01VF-I |
| Running Speed (Seconds: S) | 2~6 S |
| Boom Type | Straight |
| Max Boom Length (Meters: M) | 4M~8M |
| Cabinet Dimension (W*D*H) | 329*286*935MM, 335*315*967.2MM |
| Power Supply Input Voltage | AC220V±10%, AC110V±10% |
| Motor Voltage | DC24V |
| Enclosure Rating | IP54 |
| Working Temperature | -35℃~ + 70℃ |
| MTBF | 6,000,000 times |
| Duty Cycle | 100% |
| Traffic Flow Application | 24 hours uninterrupted operation |
| Max Motor Power | 180W |
| Max Motor Speed | 30r/min |
| Max Torque | 300N.m |
Parking Barrier Maintenance
1. Once a month to check whether the fasteners are loose, fall off and timely tightening.
2. Every six months, please ask professionals to check the wear and tear of the easy-to-wear parts and replace the worn parts in time.
3. The remote control distance is too short, please check whether the receiver is shielded by metal objects, or the battery power is insufficient. Remote control distance is affected by the weather, in rain, fog, wind, snow and other adverse weather conditions, or due to the use of remote control equipment, the region has the same frequency interference, remote control distance has been shortened, is a normal phenomenon.
WJCB01VF Machine Core
