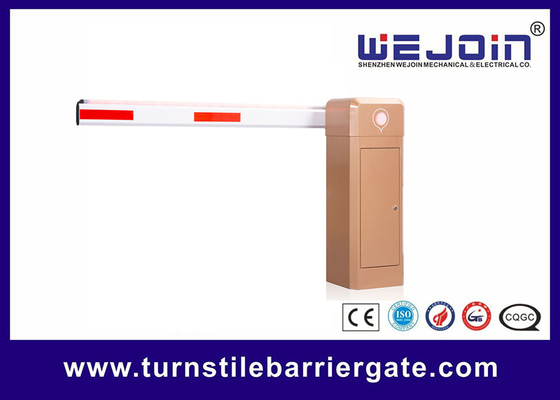

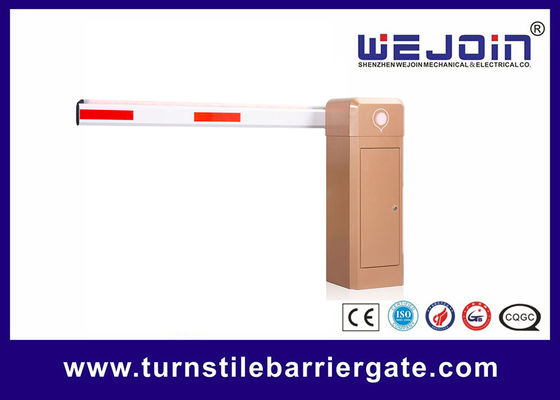

Left and right direction easy changed DC variable-frequency car parking gates
Vehicle Barrier Gate Feature
|
No. |
Item |
Functions & Features |
|
1 |
Motorcade Passing, Counting, Auto-aging Test, Delay Auto-closing, Relay Signal Output, RS485 Communication |
Support |
|
2 |
Loop Detector, Infrared Photocell, Radar |
Optional |
|
3 |
Warranty Period |
24 months for motor and control board |
Barrier Gate Technical Data
1. Power Supply Input Voltage: AC100~265V
2. Controller Input Voltage: DC24V±10%, 10A
3. Motor Power: 180W MAX
4. Running Speed:1~4 S (CB01VF-H) ；2~6 S( CB01VF-I )
5. Enclosure Rating: IP54
6. MTBF:6,000,000 times
7. Max Boom Length:8M
Barrier Gate Function
1. DC frequency conversion control motor drive, with a rod drive mechanism, balance spring, stable and reliable operation, the motor life of up to 6 million times or more.
2. The whole series is equipped with standard rebound function, when the boom is blocked in the process of falling, it will automatically rebound.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barrier gates through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Interchangeable left and right direction.
