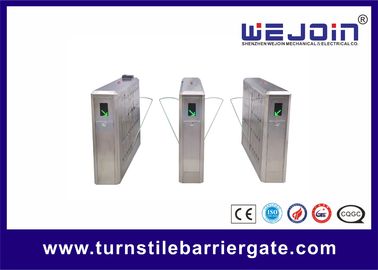

Flap barrier

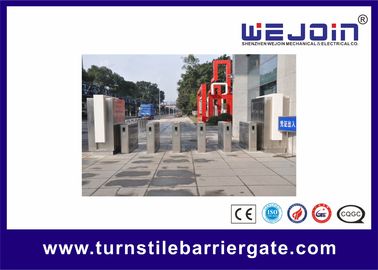

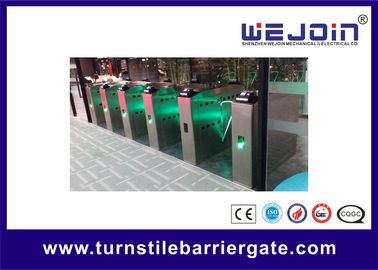

Application: Our company is the professional manufacture of  barrier gates, flap barreir gates, swing barrier gates, turnstile gates, parking lock, electric motor, etc. Our products have CE, ISO Certification, and our products have won best feedback from home and abroad.   our products have widely used in many places, like the metro station, library, gate of other company to realize the intelligent management.

Functions and features

• a compact electro-mechanical design with unique drive and a self-lock mechanism
• automatic detection for malfunction
• input interface for dry contact and switch signal connection
• adjustable auto-delay closing
• infrared photocells for safety access
• alarm for unauthorized access and no access against passenger flow
• anti-reversing passing
• auto closing when power on
• auto open and free access when power off
• adjustable access directions
• emergency interface available
• traffic light indicating passenger access

Technical data

• 1. Housing dimension: bridge type bevel angle 1400*270*1000mm
• 2. Flap arm length: 275mm
• 3. Max arm width: 900mm
• 4. Housing material: stainless steel 304
• 5. Power supply/frequency: AC220V±10%, 50HZ
• AC110±10%, 60HZ
• 6. Drive motor: 12V direct current brush motor
• Flow speed: 25~30/minute
• Input interface: +5V electric level signal or ＞100ms impulse signal, drive current >10mA, dry contact (COM NO).
• Opening and closing time: 0.5 minute
•  Power on and reset time: 3s
•  IP protection degree: IP 32
•  Working environment:
• Inner and outer (with shelter)
• Temperature: -25℃~+50º℃
• Relative humidity: ≤90%
