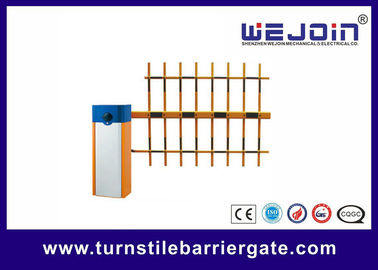

Safety Fencing Parking Barrier Gate Remote Control Die Casting Aluminum Alloy Motor

1 set

MOQ

negociate

Price

Safety Fencing Parking Barrier Gate Remote Control Die Casting Aluminum Alloy Motor

Features Gallery Product Description Request A Quote

Features

Specifications

Motor Material: Aluminum Alloy

Operating Time: 3s, 6s

Boom Type: Straight Folding Fencing

Housing Material: Stainless Steel

Highlight:

auto barrier gate system

,

car park barriers

Basic Infomation

Place of Origin: CHINA

Brand Name: WEJOIN

Certification: CE ISO SGS

Model Number: WJD10246

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 3-5 working days

Payment Terms: T/T

Supply Ability: 10000 sets/month

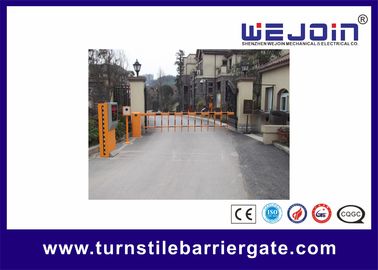

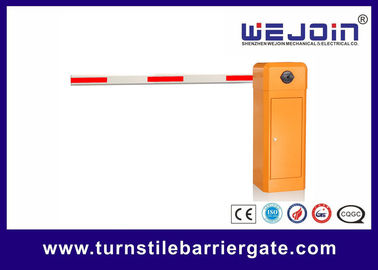

Gallery

Safety Fencing Parking Barrier Gate Remote Control Die Casting Aluminum Alloy Motor

Product Description

Hot sale products

Manual release
Machine core with compression spring, effectively avoids the accidents caused by spring broken.
Die-casting aluminum alloy motor, precision and good at thermal radiating.
Motor cooling fan, solving the problem of heat-protection
Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
reversing on obstacle
Auto-closing
Support the infrared photocell for anti-bumping(optional)
Support for the external and internal vehicle loop detector
traffic light interface
wire control(switch signal)/remote control(418Hz)
RS485 communicational module to realize the intelligent management for the passing

Model Item	101-11	101-13	101-16	101-23	101-26	101-33	101-36	101-46	101-56
Model Item	102-11	102-13	102-16	102-23	102-26	102-33	102-36	102-46	102-56
Running time	1sec	3 sec	6sec	3 sec	6 sec	3 sec	6sec	6 sec	6 sec
Boom type	straight			90 degree folding		180 degree folding		2 fencing	3 fencing
Max boom length	3m	4.5m	6m	3m	5m	3m	5m	4.5m	4m
Boom dimension(w*h)	40*80mm	45*100mm
Boom weight	3kg	4.5kg	6kg	6.5kg	8kg	9kg	11kg	7kg	7.5kg
Voltage	220V±10%, 110V±10%
Frequency	50/60 Hz
Motor voltage	220V
power	80W
Working temperature	-35centigrade +75centigrade
Protection grade	IP44

Working environment and data

13.Mechanism temperature -25degree centigrade+85 degree dentigrade

14.Control board temperature -20 degree centigrade+85 degree centigrade

15. Power supply 220V±10% 50/60 Hz

110V±10% 50/60 Hz

16.Rated power 120W

17.Relative humidity ≤90%

18.Remote control ≥30M

29.Net weigh 60 Kg
