Functions and features

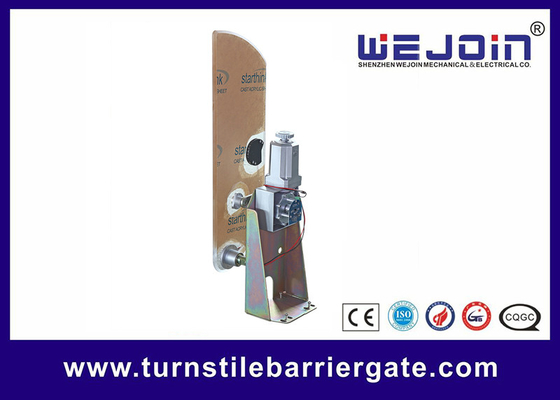

a compact electro-mechanical design with unique drive and a self-lock mechanism
automatic detection for malfunction
input interface for dry contact and switch signal connection
adjustable auto-delay closing
infrared photocells for safety access
alarm for unauthorized access and no access against passenger flow
anti-reversing passing
auto closing when power on
auto open and free access when power off
adjustable access directions
emergency interface available
traffic light indicating passenger access
Technical data
Housing dimension: bridge type bevel angle 1400*270*1000mm
Flap arm length: 275mm
Max arm width: 900mm
Housing material: stainless steel 304
Power supply/frequency: AC220V±10%, 50HZ
AC110±10%, 60HZ
Drive motor: 12V direct current brush motor
Flow speed: 25~30/minute
Input interface: +5V electric level signal or ＞100ms impulse signal, drive current >10mA, dry contact (COM NO).
Opening and closing time: 0.5 minute
Power on and reset time: 3s
IP protection degree: IP 32
Working environment:
Inner and outer (with shelter)
Temperature: -25℃~+50º℃
Relative humidity: ≤90%
