Anti-reversing Passing Flap Barrier for Passenger Flow Control in Station
Functions and features

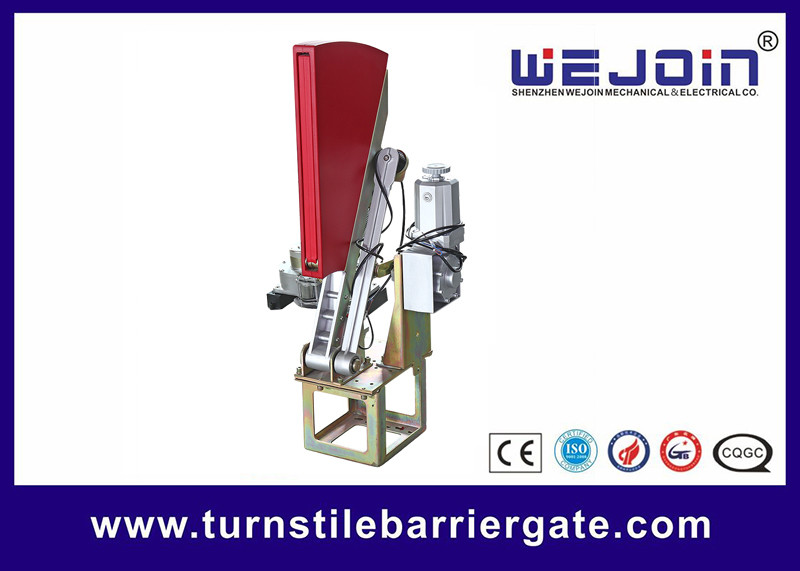

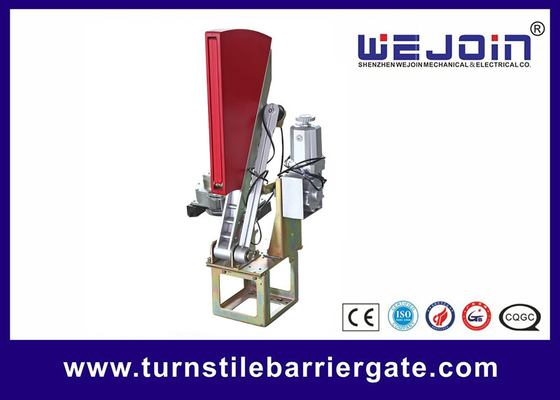

Flap barrier
a compact electro-mechanical design with unique drive and a self-lock mechanism
automatic detection for malfunction
input interface for dry contact and switch signal connection
adjustable auto-delay closing
infrared photocells for safety access
alarm for unauthorized access and no access against passenger flow
anti-reversing passing
auto closing when power on
auto open and free access when power off
adjustable access directions
emergency interface available
traffic light indicating passenger access
Technical data
1. Housing dimension: bridge type bevel angle 1400*270*1000mm
2. Flap arm length: 275mm
3. Max arm width: 900mm
4. Housing material: stainless steel 304
5. Power supply/frequency: AC220V±10%, 50HZ
AC110±10%, 60HZ
6. Drive motor: 12V direct current brush motor
Flow speed: 25~30/minute
Input interface: +5V electric level signal or ＞100ms impulse signal, drive current >10mA, dry contact (COM NO).
Opening and closing time: 0.5 minute
Power on and reset time: 3s
IP protection degree: IP 32
Working environment:
Inner and outer (with shelter)
Temperature: -25℃~+50º℃
Relative humidity: ≤90%
