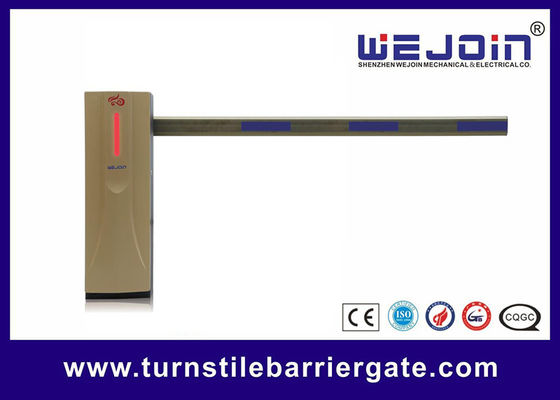

DC24V 1.8-6s running speed adjustable straight boom parking barrier gate
Boom Barrier Basic Features:
1. No spring design, eliminating the need for mechanical leveling, maintenance-free.
2. With auto-reversing on the obstruction function, the boom will auto-reverse when meeting obstacles.
3. Support external radar, loop detector, infrared photocell anti-smashing function, and built-in DC 12V power output, which can be used for external radar power supply.
4. Support RS485 communication or RS485 offline connection.
5. DC24V power supply is optional.
6. Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1.8 seconds to 6 seconds.
7. The boom will not fall off when power off, high safety.
8. Minimal operation, the direction can be exchanged in 30 seconds.
9. Bluetooth control, one-key remote service.
Common Malfunctions and Solutions
Malfunction Phenomenon: The controller resets when the barrier gate is running
A: Possible Causes: Short circuit inside the motor.
Solution: Measure the resistance of each two wires (white, yellow and red) of the motor phase line by a multimeter, to check if the resistance numbers are the same.
B: Possible Causes: Barrier gate controller failure.
Solution: Replace the controller.
Malfunction Phenomenon: Remote control distance is short
A: Possible Causes: The battery voltage of remote controller is too low
Solution: Replace the batteries.
B: Possible Causes: High-voltage wires or strong electromagnetic causing serious interference near the barrier gate
Solution: Replace the high-power remote controller.
| Left-installed | Right-installed |
| 1: Straight boom/ folding Boom 3M | 4: Straight boom/ folding Boom 3M |
| 2: Straight boom/ folding boom 3.5M | 5: Straight boom/ folding boom 3.5M |
| 3: Straight boom/ folding boom 4M | 6: Straight boom/ folding boom 4M |
| 7: Straight boom≥4.5M/ folding boom≥4M/ fence boom | 8: Straight boom≥4.5M/ folding boom≥4M/ fence boom |
