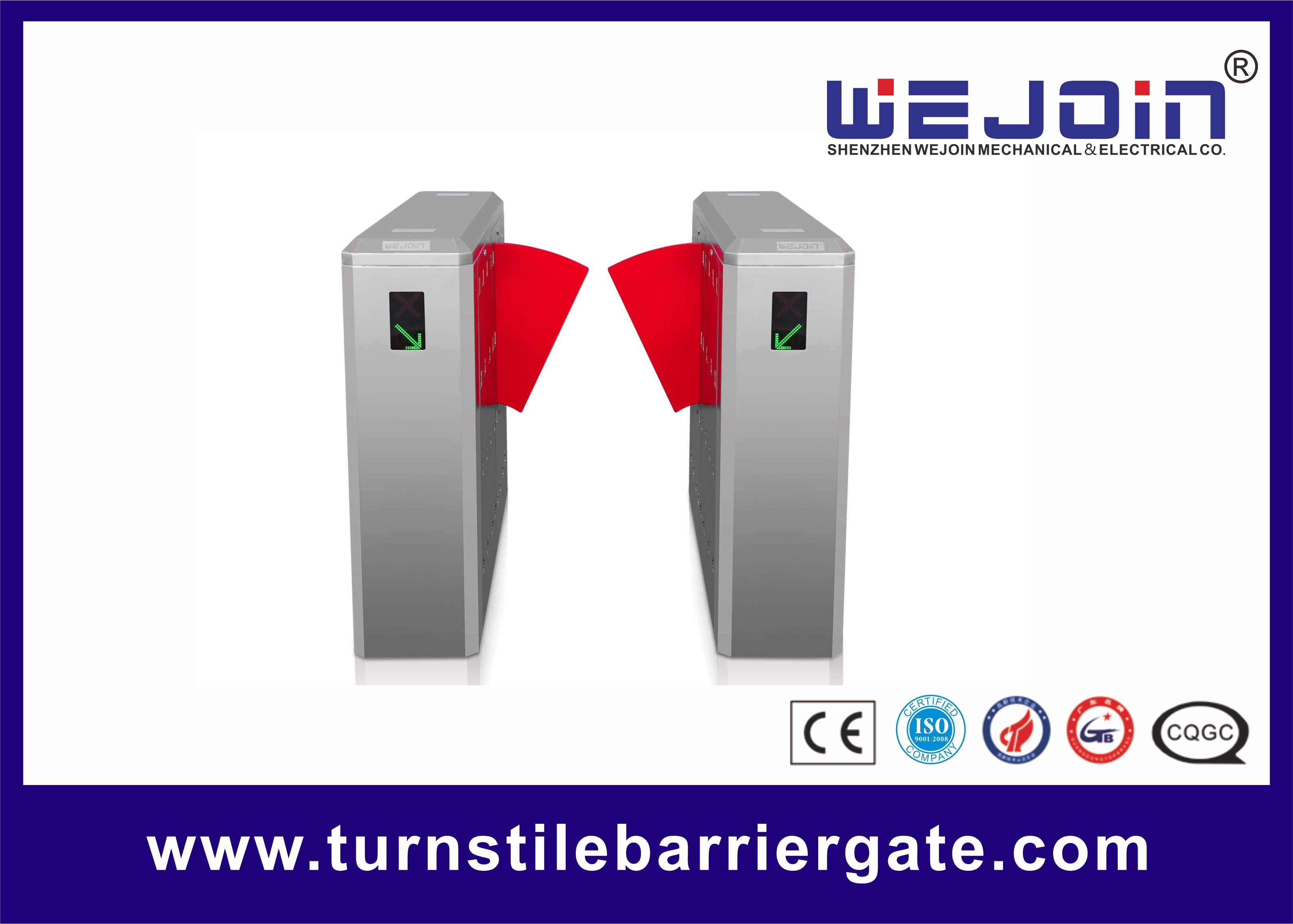

WEJOIN Fashionable Full-Automatic Flap Barrier Gate DC24V Brush Motor
Description:
Intelligent flap barrier is a new product of WEJOIN company. Flap barrier, as the upgraded version of the
tripod turnstile and swing barrier, is a high technical product for pedestrian access control. WEJOIN flap
barrier has features of precise craftsmanship, comprehensive functions and high technology. It has
application in high class communities, intelligent buildings, hotels, subway stations and other high level
venues.
Functions and Features
1.A compact electromechanical design with unique drive and a selflock mechanism (no need regular gear
clutch structure).Automatic detection for malfunctions.
2.Input interface available for dry contact and switch signal connection.
3.Adjustable auto-delay closing
4.Infrared photocells for safety access
5.Alarm for unauthorized access and no access against passenger flow
6.Anti-reverse passing
7.Auto-closing when power on
8.Auto-open and free access when power off
9.Adjustable access directions.
10.No battery is needed.
11.Emergency interface available.
12.Traffic light indicating passenger access.
|
Model |
WJTY201 |
|
Stretching-out flap length |
275mm |
|
The max lane width |
600mm |
|
Cabinet material |
Cold rolled steel & aluminum alloy |
|
Material of Flap Door |
Organic glass |
|
Housing of thickness |
1.5mm |
|
Normal Life Span |
3 millions times |
|
Communication Interface |
Standard RS485(distance less than 1200 meters) |
|
Transit speed |
30-40 persons/min |
|
Time for opening or closing |
0.5s |
|
Starting time after power on |
3s |
|
Input interface |
Dry contact signal or +12Vor pulse signal with width more than100ms DC12V |
|
Transit speed |
25~32 persons/min |
|
Working temperature |
-10°C~50°C |
|
Working environment |
Indoor / Outdoor (Shelter) |
|
Relative humidity |
≤95%, no condensation |
