110v/220v parking barrier for traffic control and safety

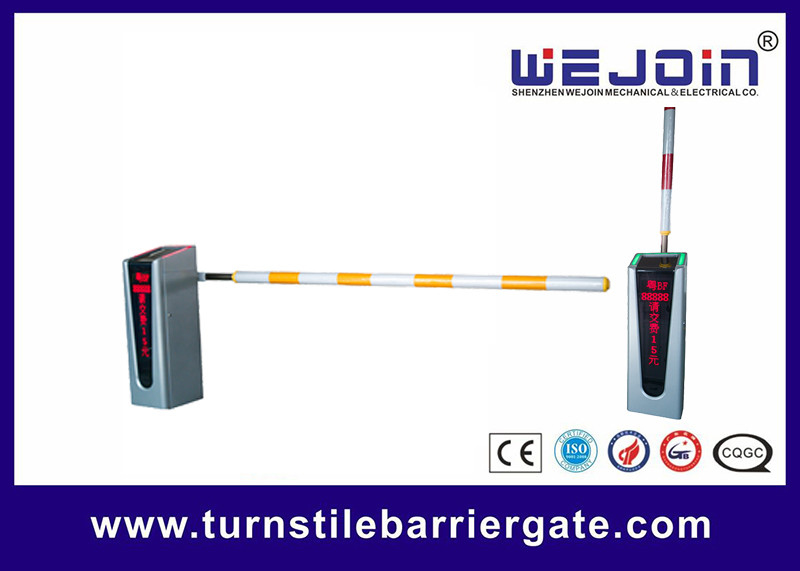

Barrier Gate Overview
Name: Bi-directional Barrier Gate
Application : Parking System
Speed:0.9-5 second
Rated Power:240W
Certificate:CE, ISO,
Net Weight:50KG
Voltage:AC220V, AC110V
Parking Barrier Functions & Features:
1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 10 million times, spring life 500,000 times.
2. Auto reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3. Supports the infrared photocell for anti-bumping function (optional)
4. Supports the external and internal vehicle loop detector (optional)
5. Auto closing
6. RS485 communication module (optional)
7. Thermal radiates rapidly, no thermal protection
8. Boom with LED light (color is changeable with remote control)
9. Cabinet with traffic light
10. Remote Control Frequency: 315MHz, 418MHz, 433MHz
Automatic Barrier Gate Specifications
| Model | CB02VF-H |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 240W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 50kgs |
| Speed | 0.9-5S |
| Max boom length | 6 meters |
