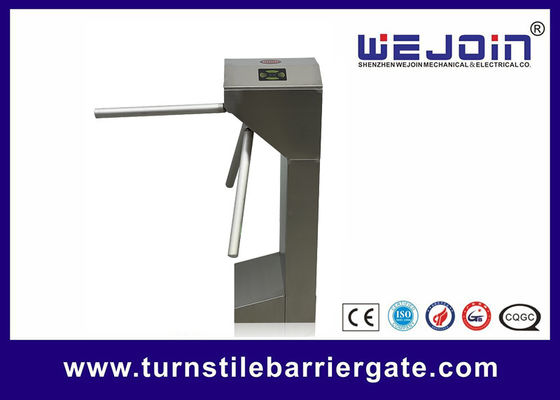

Full Automatic 304 Stainless Steel Access Control Tripod turnstile
Turnstile Gate Functions and Features:
1. 304 stainless steel: Anti-rust, wear-resistant, high temperature resistant, and corrosion resistance
2. Molded Tripod Turnstile Mechanism: Die-cast aluminum integral molding, special paving treatment
3. Pedestrian passage gate main board: Dynamic arrow lights guide traffic, Dry contact signal, Support fire signal access, Memory mode
Turnstile Technical Parameters
|
Model |
WJTS211 |
|
Material of Housing |
304 Stainless Steel |
|
Dimension of Housing |
420*330*980mm |
|
Length of Pole(out of housing) |
495mm |
|
Net Weight |
50kg |
|
Input Voltage |
220VAC±10%, 110VAC±10% |
|
Motor Power |
50W |
Tripod Turnstile Technical Data:
1. Working Temperature: -25℃~+55℃
2. Input Voltage: 220VAC±10%, 110VAC±10%
3. Motor Power: 50W
4. Working Voltage of Motor: DC12V
5. Humidity: ≤95%, no condensation
6. Material of Housing: standard 304 stainless steel, 1.2mm depth (customizable)
7. Length of Pole (out of housing): 495mm
8. Max Load-bearing of Pole: 80kg
9. Driving Force of Pole: 3kg
