A boom barrier is primarily used to maintain security, restricting those without authorization from entering designated areas. It can also be used to regulate the flow of traffic. Generally, the arm comes in either a bar or pole finish, with the option to adjust the size of the meter from 3m - 4m. When set to its default setting of 0.6 seconds, the time frame for the barrier to raise is determined.
The motor used in this product is a DC24V brushless motor that is self-developed, making it extremely reliable. With its superior worm gear and planetary reduction transmission structure, this motor provides a large amount of torque and has excellent wear resistance.
Along with this motor, a DC variable-frequency control system is provided and it allows for precise control. This also reduces the amount of mechanical impact and extends the lifecycle of your product. The system is also equipped with auto-reversing and obstruction detection, making it much more responsive and safe.
For the control panel of this product, you will find a large LCD screen that utilizes an English visual menu. This makes it extremely easy to operate and maintain. Additionally, a 433MHZ Remote Controller has been added, allowing you to add additional remote controllers with ease. It also supports motorcade passing, counting, auto-aging test, delay auto-closing, relay signal output, and RS485 communication.
In addition, loop detectors, infrared photocells, and radars are optional. Increased safety features of this product include the ability to manually power the boom up and down using the handwheel or simply lifting the boom. It also has a DC24V battery and supercapacitor back-up, allowing for easy operations in the event of a power-off.
Finally, you will be pleased to know that this product features a two-year warranty for the motor and control board.
The running speed of this product is between 0.6 seconds to 1 second, and it features a carbon fiber round boom which runs from 3m to 4m in length. The cabinet dimension is measured at 405 * 335 * 1050MM. The power supply input is either AC220V±10%, or AC110V±10%. The control board input voltage is DC24V±10%, with a 10A current. The motor voltage is DC24V, and the enclosure rating is IP54. It has a working temperature between -30℃~ +70℃, and is rated for 10,000,000 operations. The duty cycle is 100%, which means 24 hours of uninterrupted operation. The motor has a maximum power of 300W, with a maximum speed of 500r/min, and the maximum torque output is rated at 250N.m.

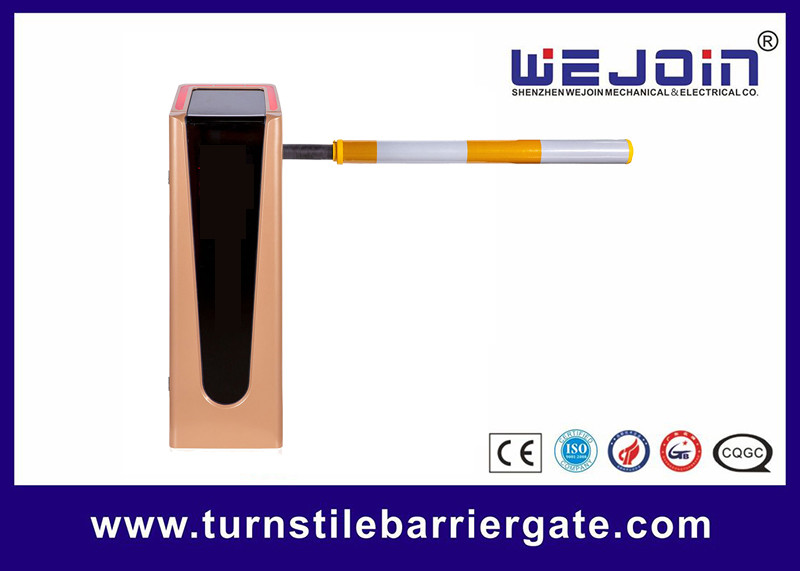

WEJOIN Boom Barrier is the perfect solution for entrance security of industrial, corporate, residential and any other type of premises. It is particularly useful for toll applications by providing 0.6 second opening/closing time, as well as manual operation in case of a power failure.
WEJOIN provides detailed customization solutions, so any installation requirement can be met. A wide selection of lengths fits any access control situation. A notably advanced feature of our boom barrier is that it offers a long-lasting battery backup capability, capable of working for 3 to 4 months without electrical energy.
We offer reliable technical support and service for Automatic Barrier Gate. This includes:
If you have any further questions or queries regarding our Automatic Barrier Gate product, please do not hesitate to contact us.
