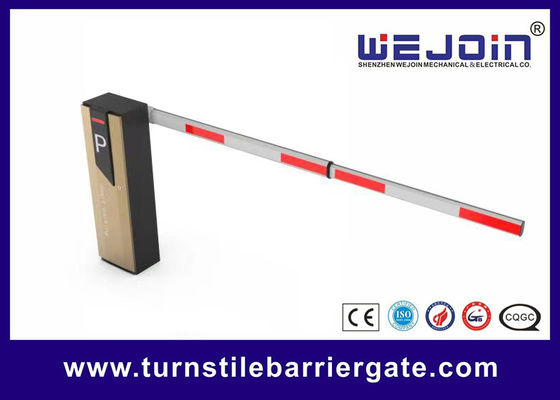

The product is comprised of four essential parts that work together to ensure efficient operation: the cabinet, transmission mechanism, control unit, and boom. Designed for ease and versatility, it can be installed on either the left or right side.
This product is specifically designed for use in controlling entrance and exit systems in parking lots, providing a reliable and secure solution for managing vehicle flow.
No need for mechanical leveling with a springless design, making it maintenance-free.
Ensures high safety with a boom that will not disengage when power is off.
Effortlessly change direction in just 30 seconds with minimal operation needed.
Enjoy the convenience of Bluetooth control and one-touch remote service.
Reliable and secure with a perfect combination of worm gear and gear.
Features anti-smashing functions such as external radar, loop detector, and infrared photocell, as well as a built-in DC 12V power output for external radar power supply.
Offers support for RS485 communication or RS485 off-line connection.
Optional DC24V power supply available.
The working temperature of the motor is between -35℃ and +80℃.
The input voltage for power supply can either be AC110±10% or AC220V±10%.
The input voltage for the controller should be DC24V±10%, with a current of 15A.
The maximum power for the motor is 120W.
The recommended relative humidity for the system is between 30% and 80%, with no condensation.
The system can be controlled remotely within a distance of at least 30 meters.
The running speed of the system is adjustable between 2 and 4 seconds.
The estimated MTBF for the system is 3,000,000 times.
The system comes with a 4.5 meter straight arm for added convenience and flexibility.
The barrier gates are designed for the management of vehicles and individuals entering and exiting different areas, including high-speed toll gates, commercial plazas, residential areas, stations, and customs checkpoints.
The Electronic Barrier Gates are carefully packaged to ensure safe delivery to our customers. Each gate is individually wrapped in protective material and placed in a sturdy cardboard box. The box is then sealed with packaging tape to prevent any damage during transit.
Inside the box, you will also find a user manual and all necessary installation hardware. The gate is disassembled for easier transportation and can be easily assembled using the provided instructions.
We offer worldwide shipping for our Electronic Barrier Gates. Our preferred shipping method is through reputable courier services such as FedEx or DHL. Delivery time may vary depending on the destination, but we strive to ensure that your order will be delivered within the estimated time frame.
For domestic orders, we also offer the option of express shipping at an additional cost. Please contact us for more information on express shipping options and rates.
We take great care in packaging our products, but in the rare event that your gate arrives damaged, please contact us immediately and we will arrange for a replacement to be sent to you.
Thank you for choosing our Electronic Barrier Gates. We hope you enjoy using them to enhance the security and convenience of your property.
