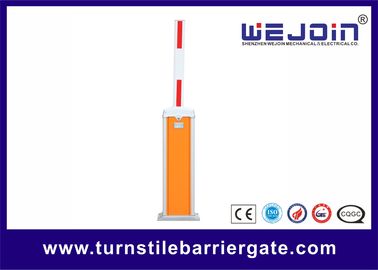

Parking Garage Gate Arm With Fence Boom , automatic boom barriers
Functions & Features
1. Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally.
2. Machine core with strong and double springs, makes the machine core work more steadily.
3. Die-casting aluminum alloy motor, precise and good at thermal radiation.
4. Crank and rod structure makes the boom run placidly.
5. Double safety limit switches (photo electricity limit switch and motor memory sensor).
6. Reversing on obstacle.
7. Auto-closing.
8. Support the infrared photocell for anti-bumping function (optional)
9. Support external and internal vehicle loop detector (optional)
10. Traffic light interface (AC220V, can support lamp with 40W)
11. Wire control (switch signal) /Remote control (418MHZ)
12. RS485 communication module( optional)
13. Open, close control interface for parking system
14. Provide limit state signal for parking system
Description
Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WJDZ60116 |
Straight boom |
4.5m |
6 seconds |
|
WJDZ60113 |
Straight boom |
4m |
3 seconds |
|
WJDZ60126 |
90 degree, Articulated boom |
4m |
6 seconds |
|
WJDZ60123 |
90 degree, Articulated boom |
3m |
3 seconds |
|
WJDZ60136 |
180 degree, Articulated boom |
4m |
6 seconds |
|
WJDZ60133 |
180 degree, Articulated boom |
3m |
3 seconds |
|
WJDZ60146 |
Two-level, fence boom |
3.5m |
6 seconds |
|
WJDZ60156 |
Three-level, fence boom |
3m |
6 seconds |
Applications:
Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.
Specifications
|
Model |
WJDZ601 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
120W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
35kgs |
|
Speed |
3S, 6S |
|
Max boom length |
6 meters |
Photo for Main Control Board
