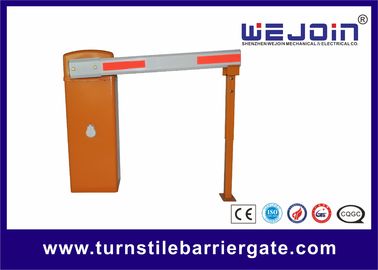

Automatic Parking Barrier Electronic Barrier Gates with Loop Detector Para
Functions & Features
1. Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally.
2. Machine core with strong and double springs, makes the machine core work more steadily.
3. Die-casting aluminum alloy motor, precise and good at thermal radiation.
4. Crank and rod structure makes the boom run placidly.
5. Double safety limit switches (photo electricity limit switch and motor memory sensor).
6. Reversing on obstacle.
7. Auto-closing.
8. Support the infrared photocell for anti-bumping function (optional)
9. Support external and internal vehicle loop detector (optional)
10. Traffic light interface (AC220V, can support lamp with 40W)
11. Wire control (switch signal) /Remote control (418MHZ)
12. RS485 communication module( optional)
13. Open, close control interface for parking system
14. Provide limit state signal for parking system
Technical Data
|
Model Item |
80111 |
801-13 |
801-16 |
801-23 |
801-26 |
801-33 |
801-36 |
801-46 |
801-56 |
|
Running time |
1.5sec |
3sec |
6sec |
3sec |
6sec |
3sec |
6sec |
6sec |
6sec |
|
Boom type |
straight |
90 degree folding |
180 degree folding |
2fencing |
3fencing |
||||
|
Max boon length |
3M |
4.5M |
6M |
3M |
5M |
3M |
5M |
4.5M |
4M |
|
Boom dimension |
45*80mm |
45*100mm |
|||||||
|
Boom weight |
3kg |
4.5 kg |
6 kg |
6.5 kg |
8 kg |
9 kg |
11 kg |
7 kg |
7.5 kg |
|
Voltage |
AC220V±10%, AC110± 10% |
||||||||
|
Frequency |
50/60HZ |
||||||||
|
Motor voltage |
220V |
||||||||
|
Power working temperature |
80W |
||||||||
|
working temperature |
-35centigrade～+60centigrade |
||||||||
|
Protection degree |
IP44 |
||||||||
Applications:
Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
Why to choose WEJOIN Barrier Gate with rubber on boom?
1. Barrier Gate with rubber on boom adopts the latest mold casting design, without clutch device. Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.
2. Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Double Springs
Infrared Photocell
