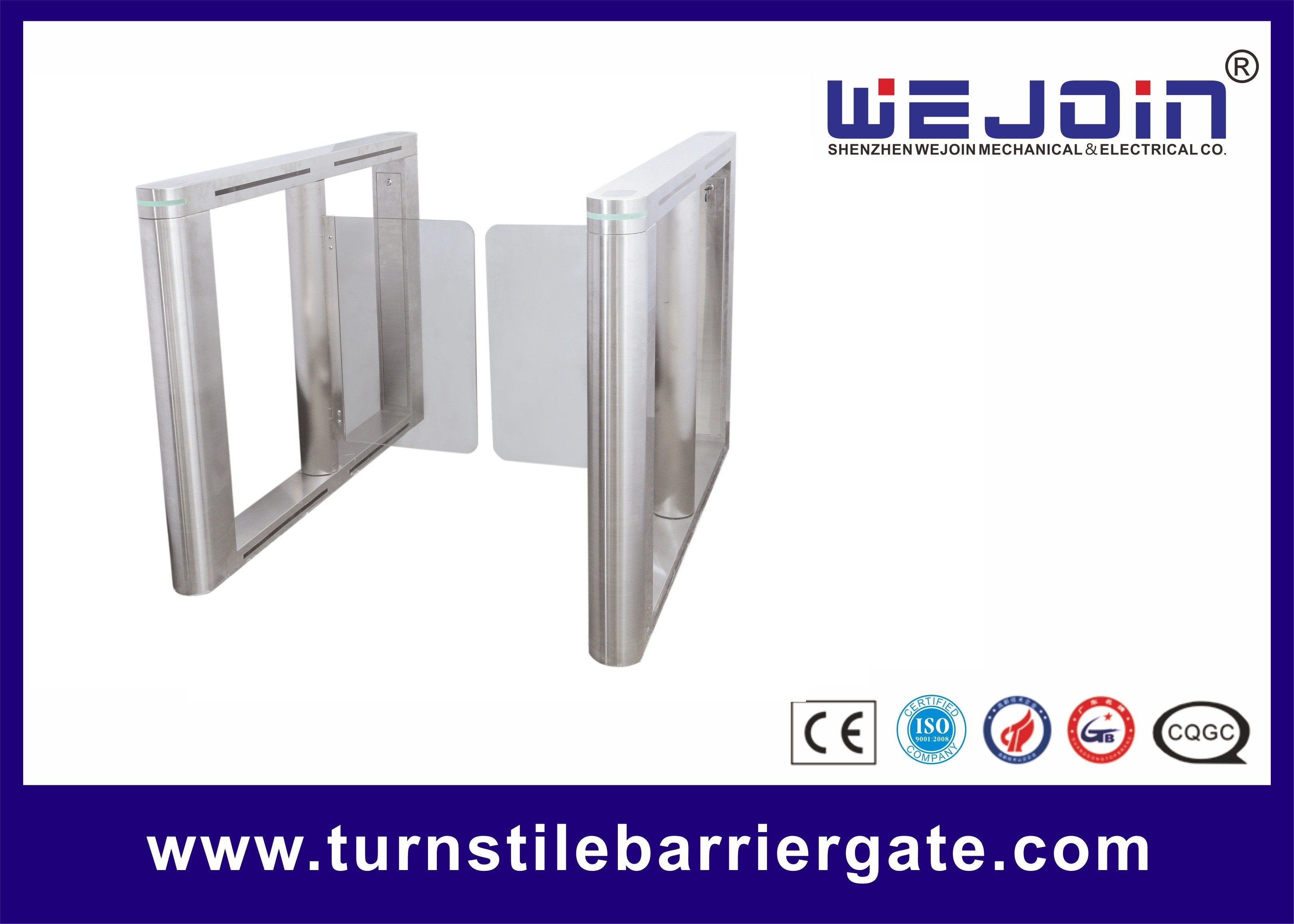

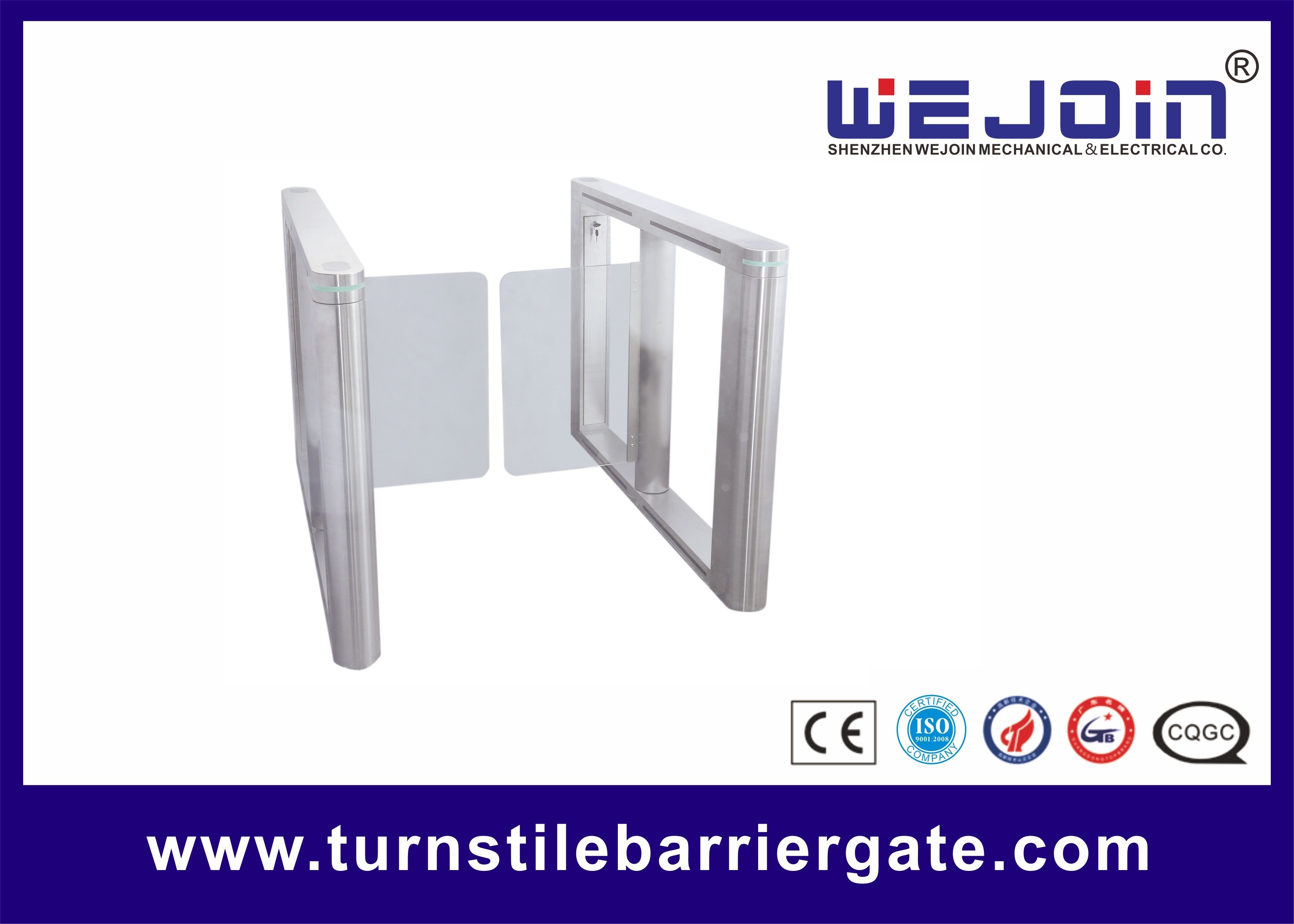

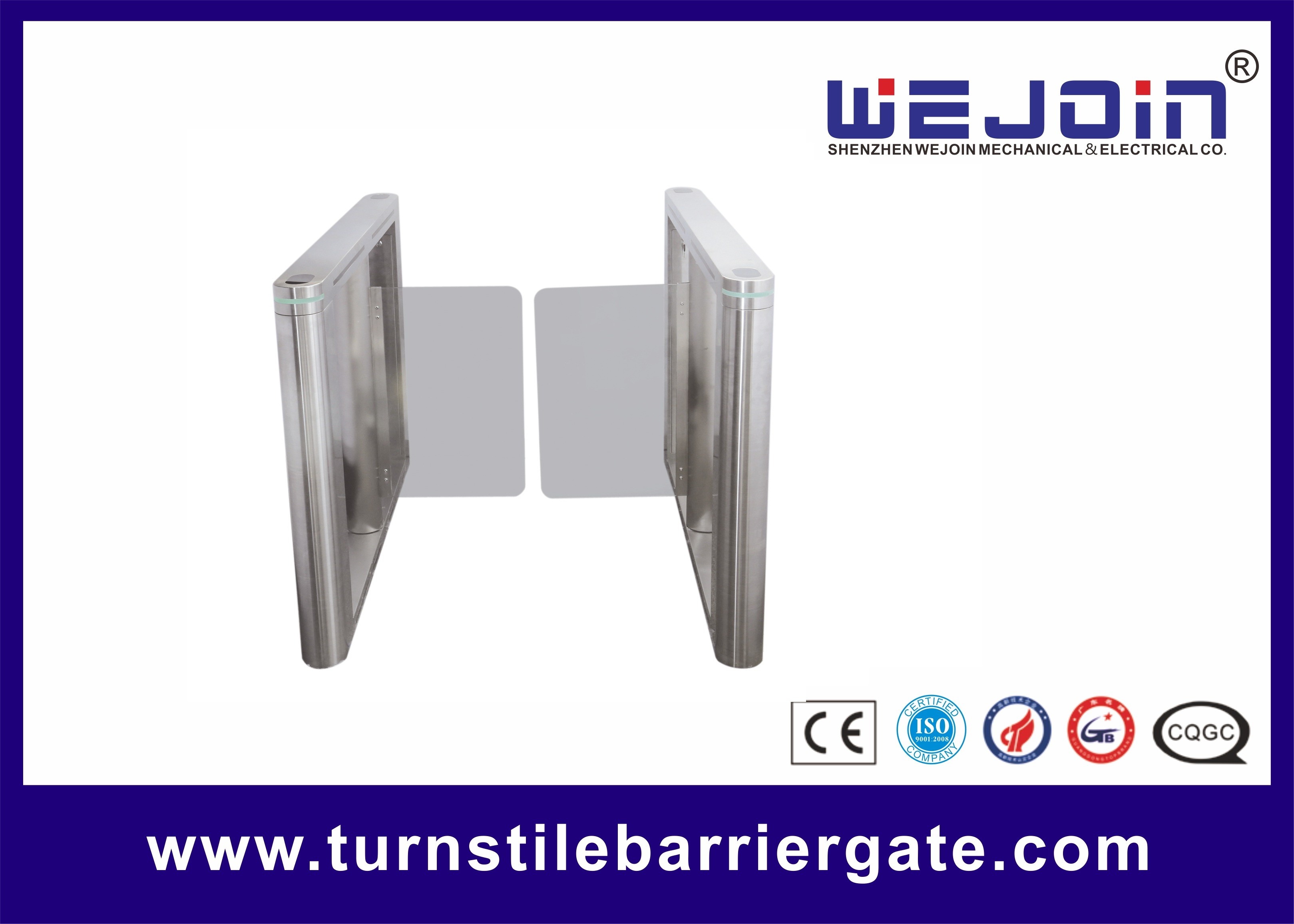

Automatic Swing Barrier Gate Integrated with Card Readers and Software
Functions and features
1. a compact electro-mechanical design with unique drive and a self-lock mechanism
2. automatic detection for malfunction
3. input interface for dry contact and switch signal connection
4. adjustable auto-delay closing
5. infrared photocells for safety access
6. alarm for unauthorized access and no access against passenger flow
7. anti-reversing passing
8. auto closing when power on
9. auto open and free access when power off
10. adjustable access directions
11. emergency interface available
12. traffic light indicating passenger access
Technical data
1. Housing dimension: 1500*120*1009mm
3. Width of Passage: 500~900mm
4. Housing material: stainless steel 304 with Special Processing
5. Power supply/frequency: AC220V±10%, 50HZ&AC110±10%, 60HZ
6. Drive motor: 12V direct current brush motor
7. Flow speed: 20~30/minute
8. Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).
9. Opening and closing time: 3minute,adjustable
10. Power on and reset time: 3s
11. IP protection degree: IP 32
12. Working environment: Inner and outer (with shelter)
13.Temperature: -25ºcentigrade~+50centigrade
Housing Dimension:
MACHINE CORE
Product detail
