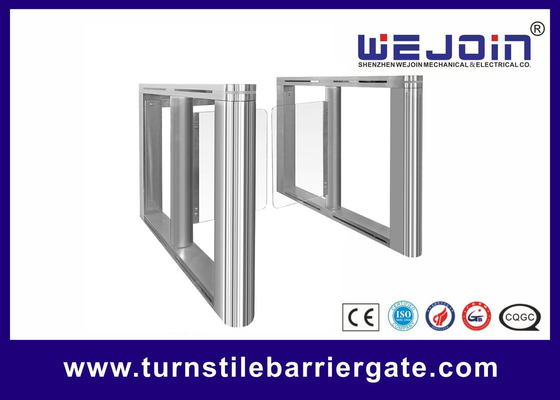

Full automatic bi-direction entrance swing barrier gate for office
Swing Barrier Gate Functions and features
1. a compact electro-mechanical design with an exquisite rotating plate and self-lock mechanism.
2. automatic detection for malfunction
3. input interface for dry contact and switch signal available for Simple integration of all common access control system.
4. adjustable auto-delay closing
5. infrared photocells for safety access
6. alarm for unauthorized access and no access against passenger flow
7. anti-reversing passing
8. auto-closing when power on
9. auto open and free access when power off
10. adjustable access directions
11. emergency interface available
12. traffic light indicating passenger access
Swing Barrier Gate Technical data
| Material of Housing | 304 Stainless Steel |
| The material of Swing Door | Plexiglass |
| Dimension of housing | 1500*120*1009mm |
| Mechanism dimension | ø108*450mm |
| Max Width of Passage | 600mm |
| Motor Material | steel and aluminum alloy |
| Transit Speed | 30-40 persons/min |
| Power Supply | AC 220V±10%,AC 110V±10% |
| Frequency | 50/60Hz |
| The working voltage of the motor | DC24V |
| Time for opening or closing | 1sec |
| Starting time after power on | 3sec |
| Working temperature | -25℃ ~ +50℃ |
| Working environment | Indoor/Outdoor (with shelter) |
| Relative humidity | ≤95%, no condensation |
Swing Barrier Gate Housing Dimension:
