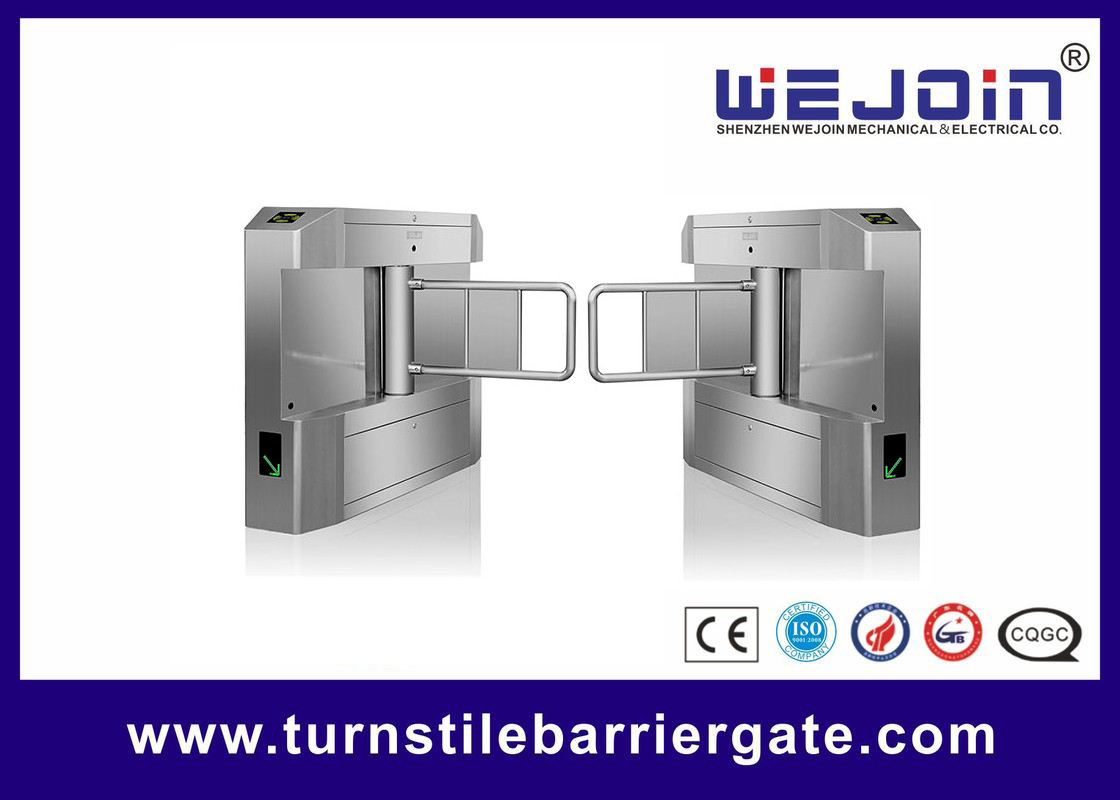

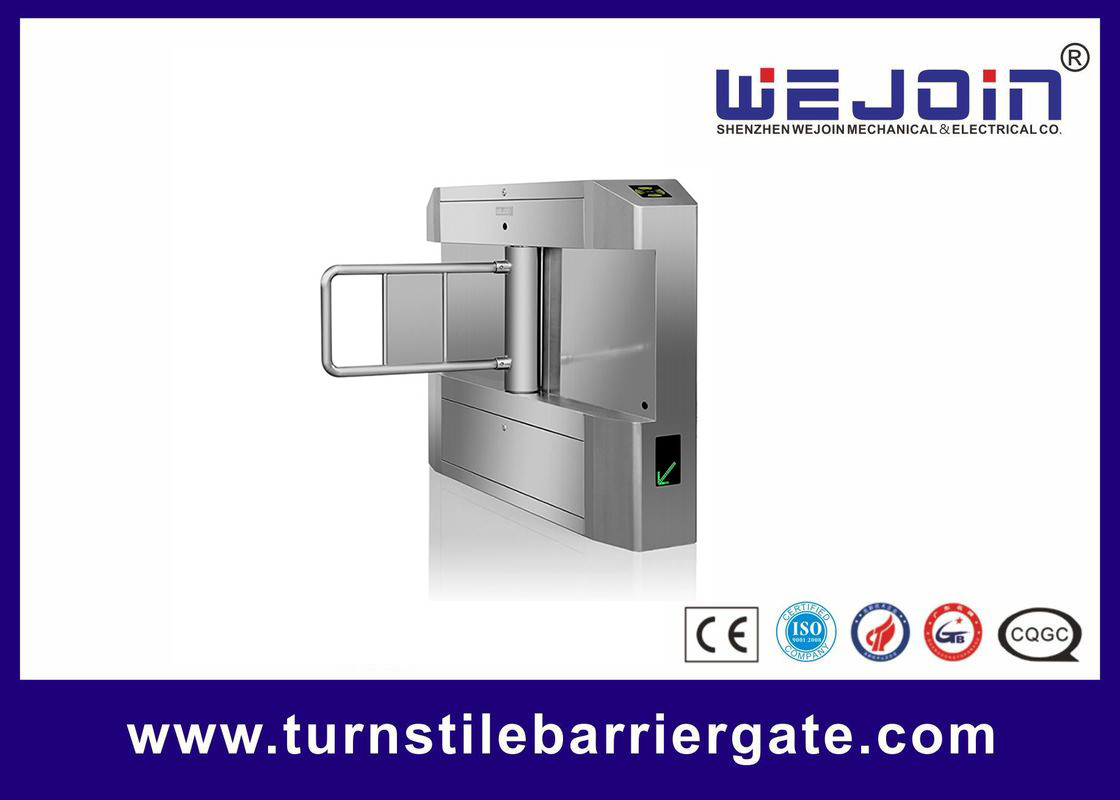

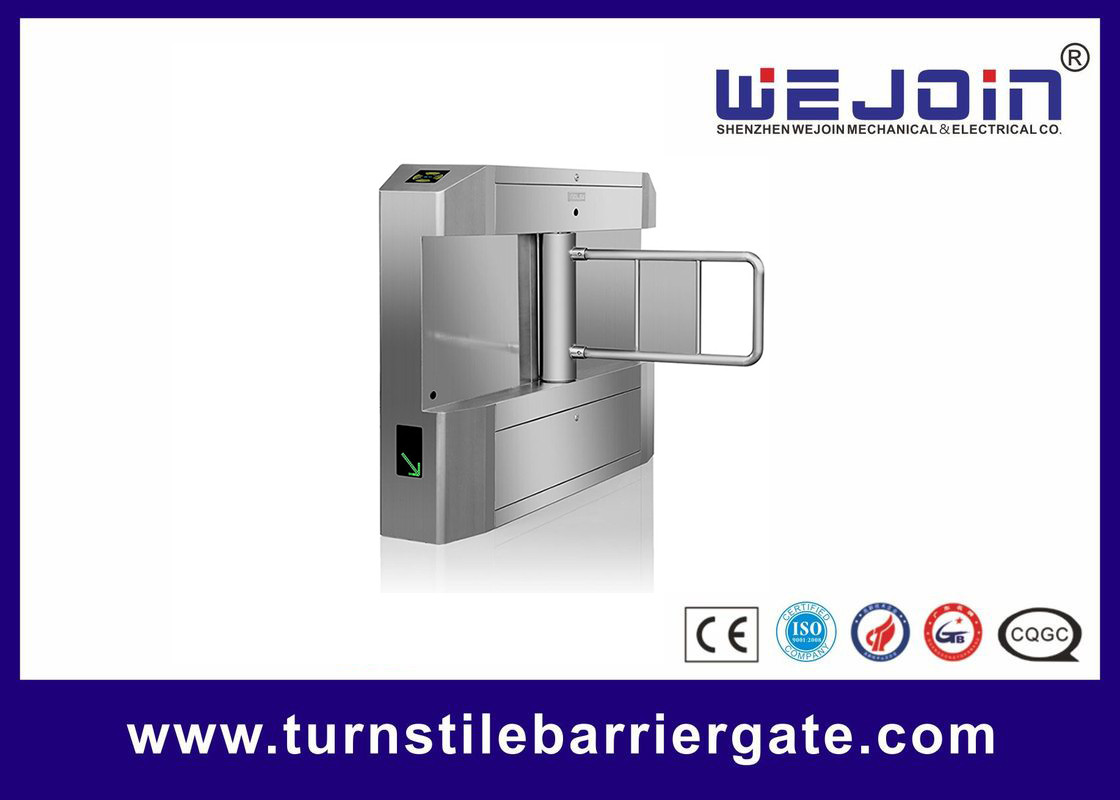

Building Access Control Swing Barrier Gate NO Voice Anti Collision Brushless Motor
NO Voice Anti collision Brushless Motor excellent design building access control swing barrier gate
Specifications
|
Model Item |
Swing Barrier Mechanism |
| Mechanism Dimension | 108*450mm |
| Arm Length(Optional) | 500-900mm |
| Swing Direction | Single or Bidirectional Operation are Available |
| Voltage | 220V+-15% or 110V+-15% |
| Driving Motor | 24V Brush DC Motor |
| Input Interface | Dry Contact and Switch Signal Connection |
| Motro Material | Steel and Aluminum Alloy |
| Working Temperature | -25°C~50°C |
| Time for Opening or Closing | 1 s |
| Transit Speed | 30~40 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Starting time after power on | 3 s |
| Relative Humidity | ≤90%, with no condensation |
Functions and features
1. a compact electro-mechanical design with an exquisite rotating plate and self-lock mechanism.
2. automatic detection for malfunction
3. input interface for dry contact and switch signal available for Simple integration of all common access control system.
4. adjustable auto-delay closing
5. infrared photocells for safety access
6. alarm for unauthorized access and no access against passenger flow
7. anti-reversing passing
8. auto closing when power on
9. auto open and free access when power off
10. adjustable access directions
11. emergency interface available
12. traffic light indicating passenger access
Description:
1.WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation and self-lock mechanism can also well protect the access control security.
2.WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.anti-reversing passing function
3.WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, bus station ,token system etc.
4.WEJOIN swing barriers have auto delay closing function, Alarm for unauthorized access and no access against passenger flow.
5.WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can ensure the entrance security.
6.WEJOIN swing barriers input interface available for dry contact and switch signal connection
