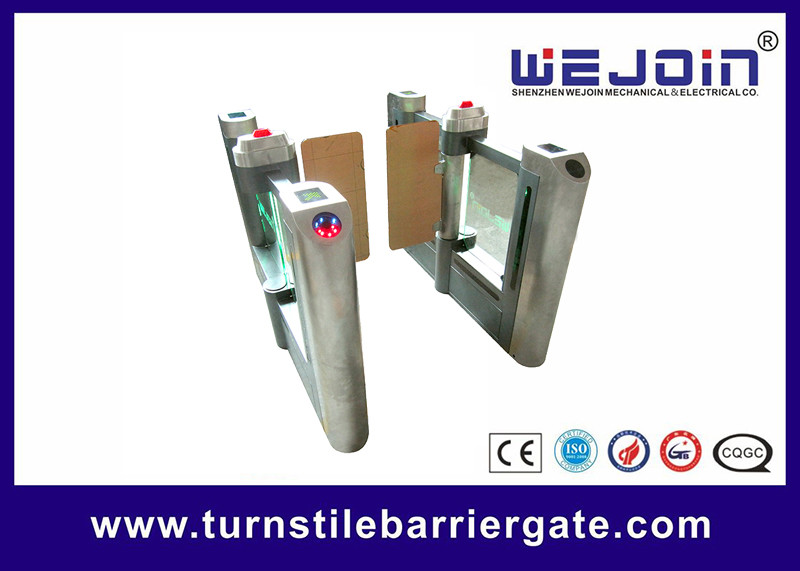

stainless steel automatic swing barrier for passager Access control
Product Description
The Swing barrier has the smallest installation footprint while offering the widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller, or user with big luggage to pass through with comfort.
Its compact size and tubular shape allow it to easily fit into places with very limited space. Access control and time attendance reader can be integrated into the top cover.
Its design is simplified to achieve optimum function at a more affordable cost. The Control system mechanism is modular for easy maintenance servicing and part replacement.
It is typically used together with a flap barrier or turnstile as a manual lane for the handicapped users in the building lobby. Ideal for low traffic and light duty site that requires a more affordable solution.
Features
1. WIDEST OPENING
Compared to the tripod turnstile and flap barrier, the swing barrier allows the widest opening clearance.
The slim form factor only takes up minimum space from passage clearance space. 2 unit swing barrier can be installed on the same lane to give maximum clearance 1210mm (inclusive 10 mm clearance).
2. CUSTOMIZE OPENING
The swing barrier allows customizable opening. The acrylic gate can be cut short according to clearance available at the site to
achieve perfect fitting. Control system will auto synchronize both swing barriers installed in the same lane. Both swing barrier will open and close at the same time.
3. EASY INTEGRATION
A push-button or access control reader can be used to trigger the swing barrier to open via a simple dry contact signal. After the delay timer elapsed, the swing barrier will automatically close back by itself.
Parameter
| Starting time after power on | 3s |
| Time for Opening or Closing | 1s |
| Transit Speed | 30~40 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Working Temperature | —25°C~50°C |
| Relative Humidity | ≤90%, with no condensation |
