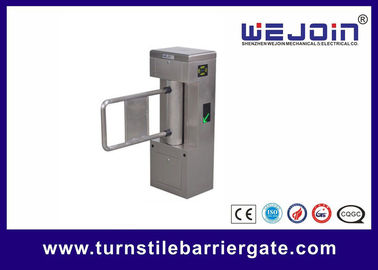

Safety Access Swing Barrier Gate Infrared Photocells Turnstile DC 24V
Quick Detail:
Description:
1. Mechatronics structure design, unique drive mode, stable and reliable mechanical self-locking mechanism;
2. Fault self-test function, convenient for users to maintain and use;
3. After opening the door, if the person does not pass, the door will be closed automatically with delayed time, and the delay time is adjustable;
4. Sound and light alarm function, including illegal intrusion, automatic alarm;
5. Anti-reverse passage.
6. Can be connected with a variety of system equipment, line control / dry contact input
7. Infrared anti-collision function
8. With automatic closing function after power on
9. The gate is automatically unlocked after power failure, and the gate lever can be pushed freely;
10. One-way or two-way control of personnel access function;
11. Fire linkage emergency gate function, can open the door in an emergency
12. Can be connected to the two-way traffic light, with light prompts the passage state: can pass or prohibit passage
Specifications
|
Model Item |
Swing Barrier Mechanism |
| Mechanism Dimension | 108*450mm |
| Working Environment | Indoor / Outdoor (Shelter) |
| Arm Length(Optional) | 500-900mm |
| Voltage | 220V+-15% or 110V+-15% |
| Driving Motor | 24V Brush DC Motor |
| Swing Direction | Single or Bidirectional Operation are Available |
| Input Interface | Dry Contact and Switch Signal Connection |
| Time for Opening or Closing | 1 second |
| Starting time after power on | 3 seconds |
| Transit Speed | 30~40 persons/min |
| Motro Material | Steel and Aluminum Alloy |
| Working Temperature | —25°C~50°C |
| Relative Humidity | ≤90%, no condensation |
