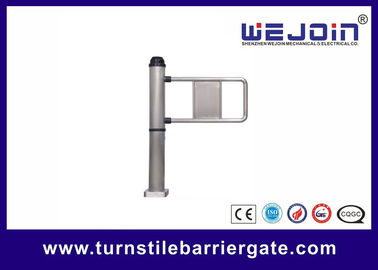

Slim Swing Barrier Gate With Enhanced Functions
Functions and features
1.input interface for dry contact and switch signal connection
2. automatic detection for malfunction
3. a compact electro-mechanical design with unique drive and a self-lock mechanism
4. infrared photocells for safety access
5. adjustable auto-delay closing
6. alarm for unauthorized access and no access against passenger flow
7. auto open and free access when power off
8. auto closing when power on
9. traffic light indicating passenger access
11.anti-reversing passing
12.emergency interface available
Technical data
1.Housing material: stainless steel 304
2.Power supply/frequency: AC220V±10%, 50HZ,AC110±10%, 60HZ
3.Drive motor: 12V direct current brush motor
4.Flow speed: 25~30person/minute
5. Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).
6.Opening and closing time: 0.5 minute
7.Power on and reset time: 3s
8.IP protection degree: IP 32
9.Working environment:
