Turnstyle Gates Entrance Turnstiles Compatible with IC / ID / Bar Code

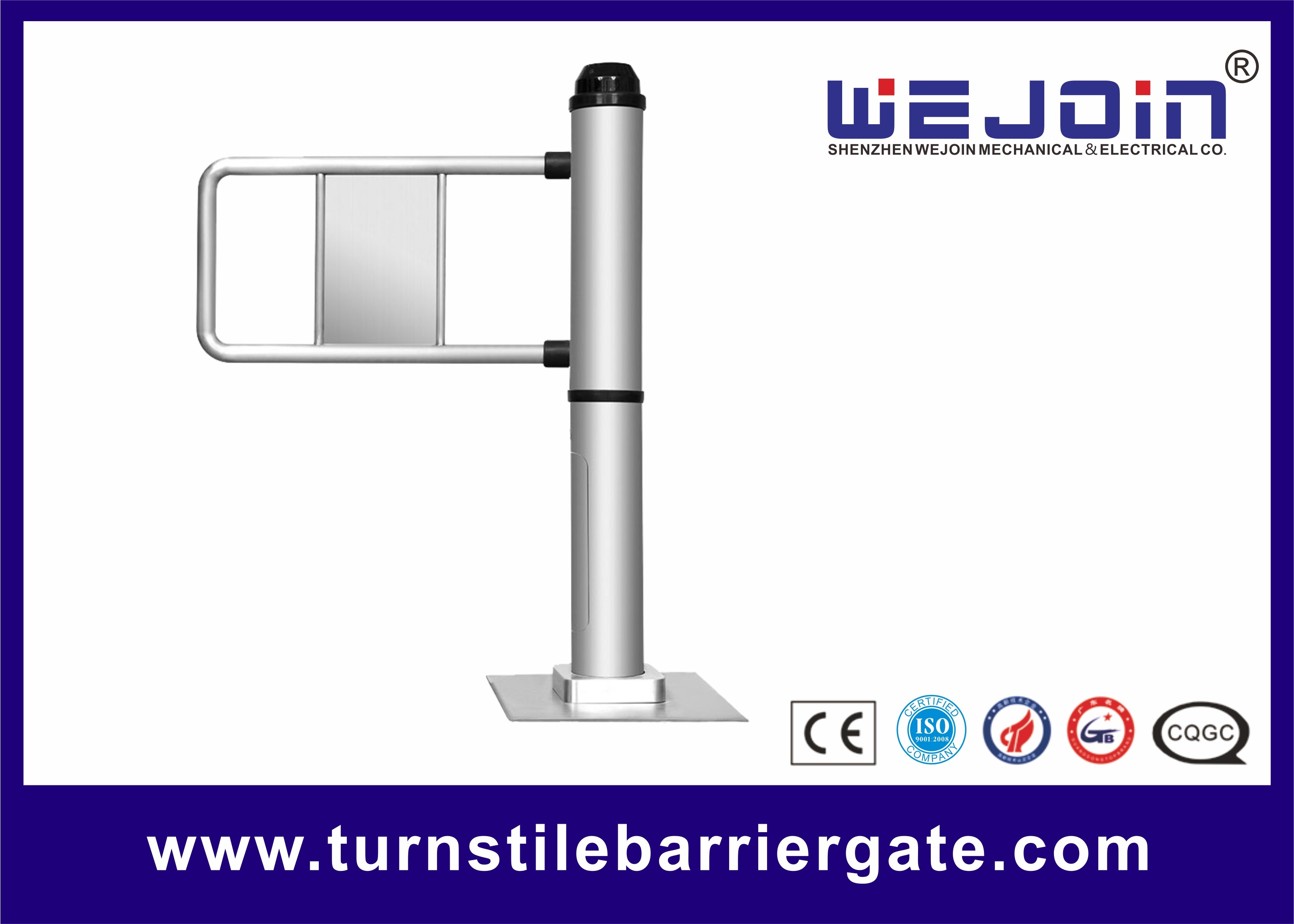

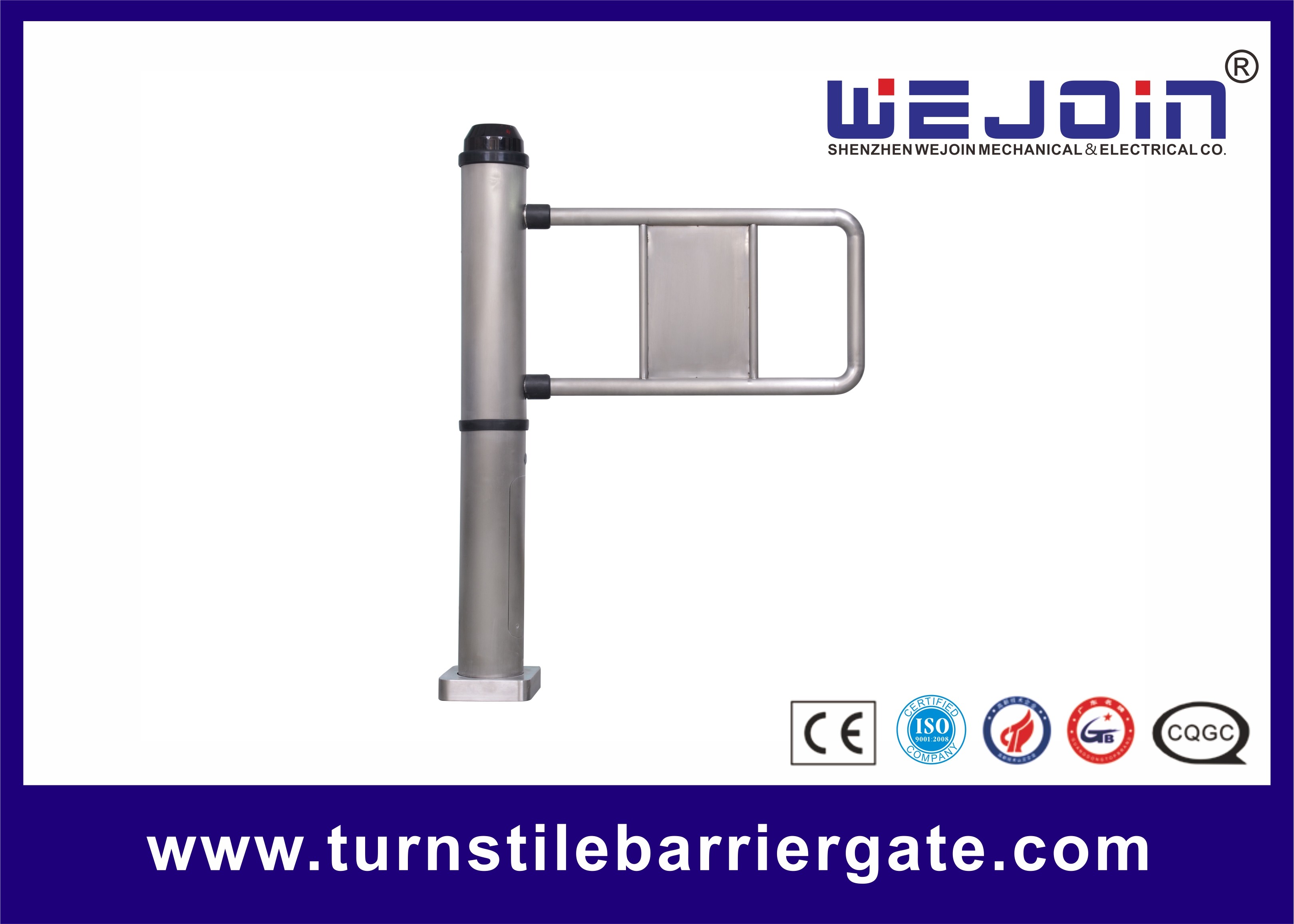

Name: 110/220V Access Control Swing Barrier Gate With Slim And Unique Housing Design
Quick Detail
Model:WJTB101
Application:Access control System
Housing Material:304 Stainless Steel
Feature: Compatible with IC/ID/bar code,etc
Voltage:AC110V/220V
Certificate:ISO,CE
Feature and Function
1.A compact electric and mechanical design with unique drive which ensure product durability and silent
operation, and its self-lock mechanism can also well protect the access control security.
2.Automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
3. Input interface which are available for dry contact and switch signal connections. So customers can
integrate the swing barrier with different system, like card reader, ticket system, token system etc.
4. Auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will
cancel the order and the auto-delay closing time is adjustable.
5. Audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.
6. It can be integrated with fire control device, which allow the release on emergency for security
consideration.
Specifications
|
Model Item |
Swing Barrier Mechanism |
|
Mechanism Dimension |
108*450mm |
|
Arm Length(Optional) |
500-900mm |
|
Motor Material |
Steel and Aluminum Alloy |
|
Driving Motor |
24V BrushB DC Motor |
|
Swing Direction |
Single or Bidirectional Operation are Available |
|
Input Interface |
Dry Contact and Switch Signal Connection |
|
Time for Opening or Closing |
1 second |
|
Starting time after power on |
3 seconds |
|
Transit Speed |
30~40 persons/min |
|
Working Environment |
Indoor / Outdoor (Shelter) |
|
Working Temperature |
—25°C~50°C |
|
Relative Humidity |
≤90%, no condensation |
Wooden packing
