Remote Control Automatic Car Park Barriers
Quick Detail:
A. Name: Automatic Barrier Gate
B. Voltage: AC220V, AC110V
C. Speed: 3s,6s
D. Net Weight:60KG
E. Application: Parking Lot
F. Feature: Manual release
G. Power consumption: 200W
H. Certificate: CE, ISO,
Description:

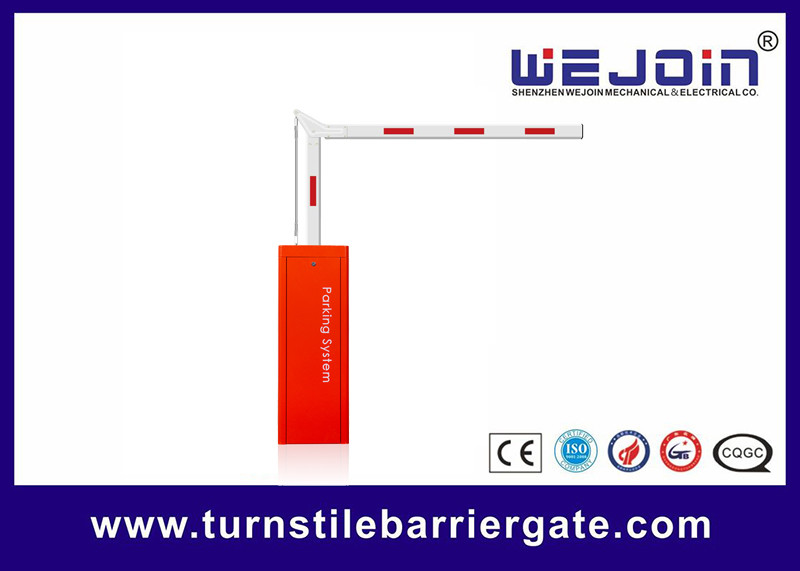

The WEDZ801J barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
Functions & Features:
1.New deceleration device,using CNC comprehensive precision process;reducing notice,preventing oil spills,better working,more convenient maintenance.
2.Cranks of main power output,use cast steel,swing crank uses strengthen design,the working life can be 6 million times during normal maintenance.Daily working times(non-stop) can be over 60000.
3.The motor well adapts to high and low temperature(-35℃~85℃)
4.New digital limit technology,free adjusting,precise control;Buffer and slow down when arem goes to limit position,working is more stably.
5.More powerful control system,microcomputer settings,arm up angle adjustable,counting,auto closing time adjustable,sensibility of reversing on obstacle adjustable,RS485 communication,working speed adjustable,and etc.
Specifications :
| Model | WJDZ801J |
| Working Temperature | -35℃～+85℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Power consumption | 200W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Speed | 3s,6s |
| Parameter choose | direction,length,style of arm |
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
