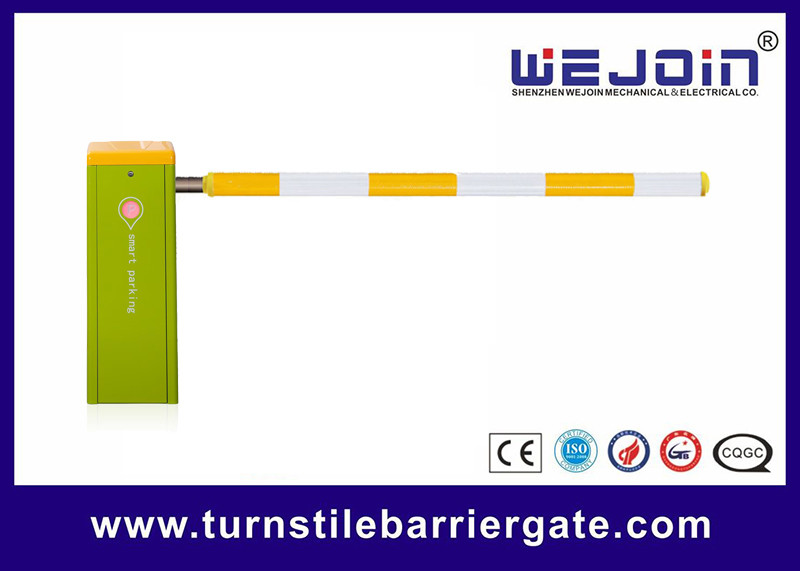

Wireless access control Barrier Arm operators with loop detection for exit
WEJOIN DZ04SV/DZE/DZJ Series Barrier Gate Spring Selection Table
| Boom-Type |
Boom Length Meter: M |
Spring Diameter ∅ (mm) |
| Straight Boom without Rubber | 6 ≥ L ≥ 4.8 | ∅5.5 + ∅4.5 |
| 4.8 > L ≥ 3.5 | ∅5.5 | |
| 3.5 > L ≥ 2.5 | ∅4.5 | |
| Straight Boom with Rubber | 6 ≥ L ≥ 5.3 | ∅6.8 + ∅4.5 |
| 5.3 ≥ L ≥ 4.3 | ∅5.5 + ∅4.5 | |
| 4.3 > L ≥ 3.5 | ∅4.5 + ∅4.5 | |
| 3.5 > L ≥ 3 | ∅5.5 | |
| 3 > L | ∅4.5 |
Toll Gate Technical Data
1. Working Power: 220V±10%, 110V±10%
2.Motor Power: 120WMAX
3.Humidity:彡90% RH
4. Distance of remote control:L>30m
5.Insulation Grade: F
6: Max Motor Power: 120W
Common Malfunctions and Solutions
Q: When power-on, press the "UP" or "DOWN" button, there is a reaction on the boom.
A: Check up the power supply and the fuse.
A: Check if the remote controller matches the radio receiver; or check-up
the battery inside and then change it if it lacks power.
A: Check whether there is co-channel interference, and press the buttons
on the control, board to check if can work.
A: Checkup if the external protection circuit is failing or in protection
status. Check up the condition of photocell and loop detector are lighting.
