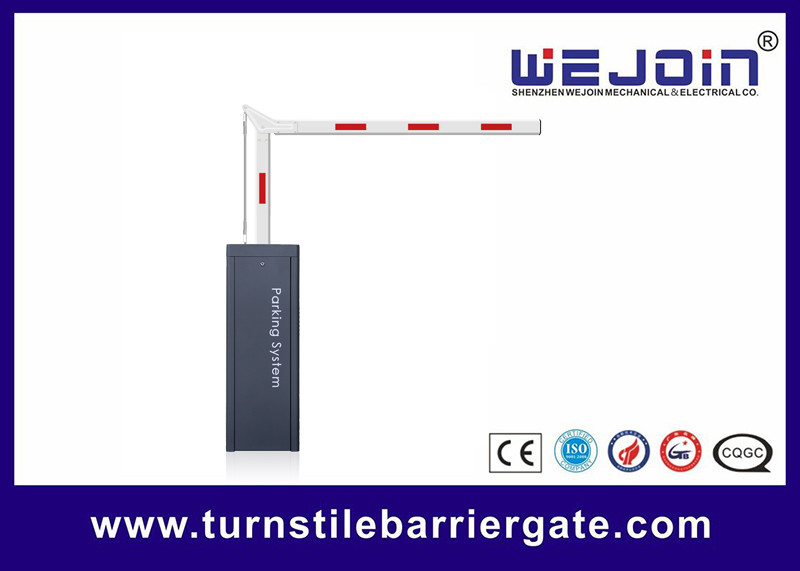

Intelligent 180-degree folding boom barrier with access control
Applications:
Traffic Parking Boom Barrier Gate adopts a special machine core, swing away boom holder, and boom. This barrier gate running time is 3s,6s according to customers' requirements. It can be used for underground parking systems, factory gates, bus stations, and so on.
Specifications
| Model | WJDZJ |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 200W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Max boom length | 8m |
| Speed | 3s,6s |
| Net weight | 60kgs |
Functions & Features:
1. RS485 Communication Module is compatible
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Reversing upon obstacle
5. Auto closing realization through menu setting on the control panel
6. Manual release device to operate the barrier when power failure
7. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
