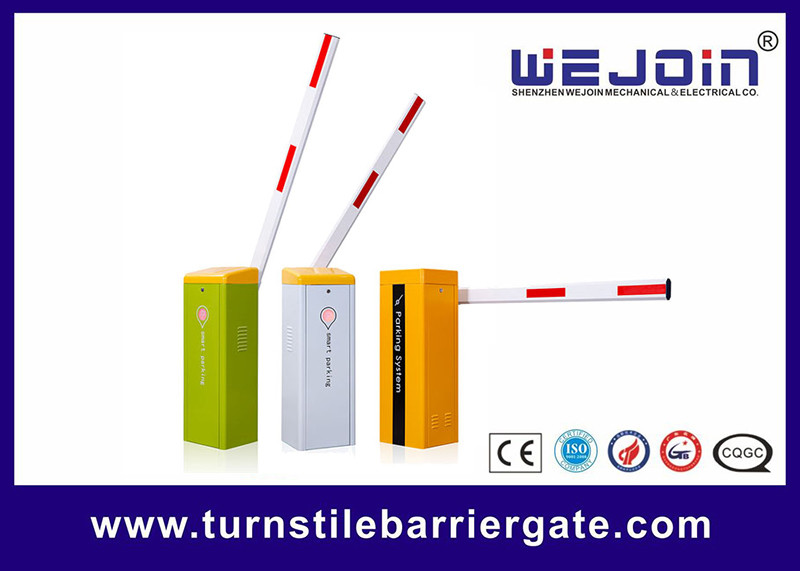

Straight boom automatic vehicle access traffic control barrier gate
Vehicle Barrier Gate Quick Detail:
The technology is applied to drive the motor of electric vehicle and spindle motor of CNC lathe.
# Strong moment, high precision control, low-temperature rise
# Standard traffic lights
# 3-5S speed adjustable
# yellow-green, dark grey + light grey and yellow-white color optional
| Model | WJDZE (speed 3~5s adjustable) | ||||||
| Running Speed | 3S | 4S | 5S | 5S | 5S | 5S | 5S |
| Boom-Type | Straight | Straight | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence |
| Max Boom Length | 4.5M | 5M | 6M | 5M | 4M | 4.5M | 4M |
| Input Voltage | AC220V±10%, AC110V±10% | ||||||
| Frequency | 50/60HZ | ||||||
| Motor Voltage | DC310V | ||||||
| Enclosure Rating | IP54 | ||||||
| Working Temperature | -35°C ~ +85°C | ||||||
| MTBF | 3 million times | ||||||
| Traffic Flow Application | 24 hours of uninterrupted operation | ||||||
| Max Motor Power | 120W | ||||||
| Max Motor Speed | 24r/min | ||||||
| Max Torque | 240N.m | ||||||
Vehicle Barrier Gate Functions & Features
1. No clutch design: open the barrier gate by manual handwheel when the power of.
2. No limit switch design: the motor can detect the boom position automatically.
3. Bi-direction boom holder design: left- installation and right-installation can be exchanged easily and quickly.
4. Self-detect after power-on, open/close speed is adjustable.
5. With auto-reversing on obstruction function.
6. Infrared photocell interface and Loop detector interface are available.
7 . Built-in delay auto-closing function ,coordinated with counting function .
8. With auto-aging test function.
9. NO / NC wire control signal input is optional.
