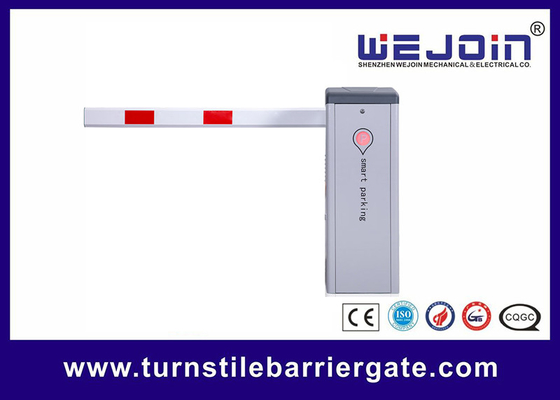

speed 3~5s adjustable 3 million times Intelligent Barrier with Max. 6m boom
Application
This intelligent parking gate barrier provides a secure and convenient solution of stopping unauthorized vehicles or giving access to authorized vehicles, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport, etc.
Description
TCP-IP Port for Easy Integration (Optional)
The barrier provides optional TCP-IP RJ45 port, which can integrate the barrier with your own system conveniently, so you can control the barrier by your own system.
Free-maintenance DC Brushless Motor
10 million cycles MTBF & 100% duty cycle
Free-maintenance DC24V brushless servo torque motor ensures 10 million cycles MTBF long life span; 100% duty cycle makes barrier continuously work at 24*7 hours; Max. 50W super low consumption makes barrier environment friendly but outputs super-strong torque
Manually Control When Power Is Off
If the power supply is off, you can manually open/close the barrier gate by the black lever.
Also, the boom can be manually locked in any position between horizontal and vertical by this level.
Automatically Check Status & Report Error
The barrier system will automatically check its operation status and show error code on its LED tube if an error occurred. This helps you quickly find out problems and find a solution.
Specifications of the barrier gate
| Model | WJDZE (speed 3~5s adjustable) | ||
| Running Speed | 3s | 4s | 5s |
| Boom-Type | Straight | Straight | Straight |
| Max Boom Length | 4.5m | 5m | 6m |
| Input Voltage | AC220V±10%,AC110V±10% | ||
| Frequency | 50/60HZ | ||
| Motor Voltage | DC310V | ||
| Enclosure Rating | IP54 | ||
| Working Temperature | -35°C~+85°C | ||
| MTBF | 3 million times | ||
| Max Motor Power | 120W | ||
| Max Motor Speed | 24r/min | ||
| Max Torque | 240N.m | ||
