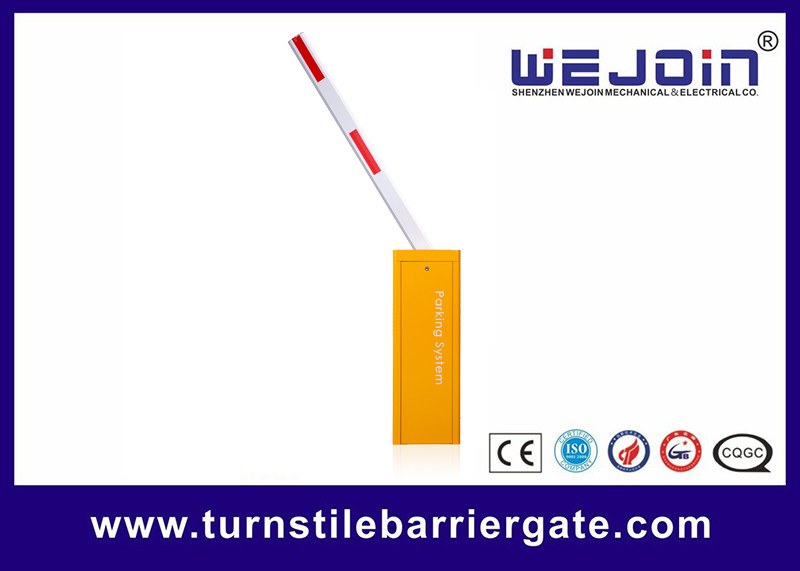

Max. 6m straight arm Boom Auto-reverse On Obstacle Intelligent Barrier
Technical Data
| Model (WJDZ) | 801J-13 | 801J-16 | 801J-23 | 801J-26 | 801J-33 | 801J-36 | 801J-46 | 801J-56 |
| Speed | 3s | 6s | 3s | 6s | 3s | 6s | 6s | 6s |
| Arm Type |
Straight (Telescopic arm is optional) |
90° folding | 180° folding | 2 fencing | 3 fencing | |||
| Max Arm Length | 4.5m | 6m | 3m | 5m | 3m | 5m | 4m | 3.5m |
| Arm Dimension | 45*100mm | |||||||
Application
This Car Parking Barrier provides a secure and convenient solution of stopping unauthorized vehicles or giving access to authorized vehicles, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport, etc.
Manually Control When Power Is Off
If the power supply is off, you can manually open/close the barrier gate by the black lever.
Also, the boom can be manually locked in any position between horizontal and vertical by this level.
Automatically Check Status & Report Error
The barrier system will automatically check its operation status and show error code on its LED tube if an error occurred. This helps you quickly find out problems and find solutions.
Boom Auto-reverse On Obstacle
While moving down, the boom will automatically reverse immediately once it is obstructed by a vehicle or pedestrian, which protects the vehicle or person. The sensitivity is adjustable.
