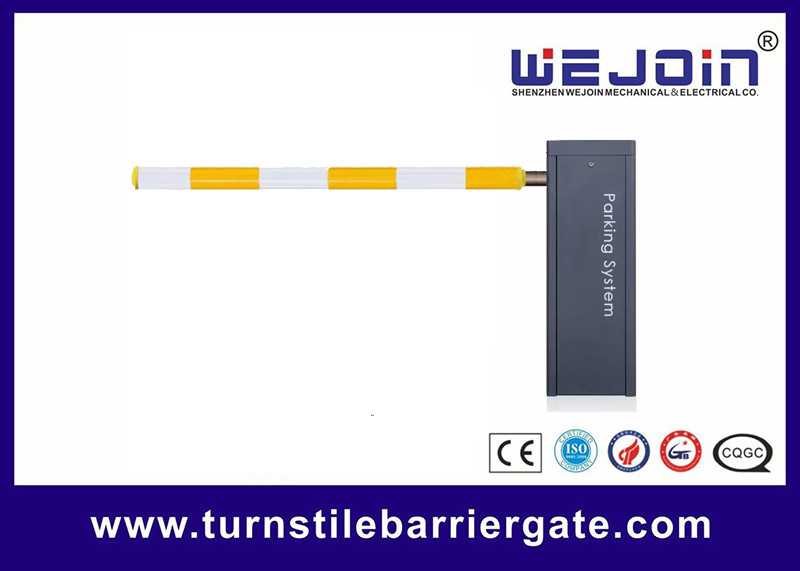

Highest security intelligent traffic boom barrier
Intelligent Barrier Applications:
station
highway tollgate
high-grade residential area
commercial parking lots
enterprises and institutions
commercial Plaza
Intelligent Barrier Functions & Features:
1.Wheel manual release.
In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually.
when power on, the motor will work normally.
2.Machine core with strong and double spring, make the machine core works more steadily.
3.Die-casting aluminum alloy motor, precise and good at thermal radiation.
4.Crank and rod structure makes the boom run placidly
5.Double safety limit switches(photoelectricity limit switch and motor memory sensor)
6.Reversing on an obstacle
Intelligent Barrier Technical Data:
|
Arm Dimension |
45*100mm |
|||
|
Voltage |
AC220V±10%, AC110V±10% |
|||
|
Frequency |
50/60HZ |
|||
|
Power Consumption |
200W |
|||
|
Humidity |
≤90% |
|||
|
Working Temperature |
-35°C∼+60°C |
|||
|
Housing Dimension (W*D*H) |
335*285*925mm |
|||
|
Enclosure Rating |
IP54 |
|||
|
MTBF |
2500000 times |
|||
|
Net Weight |
40KGS |
|||
|
Gross Weight |
45KGS |
|||
