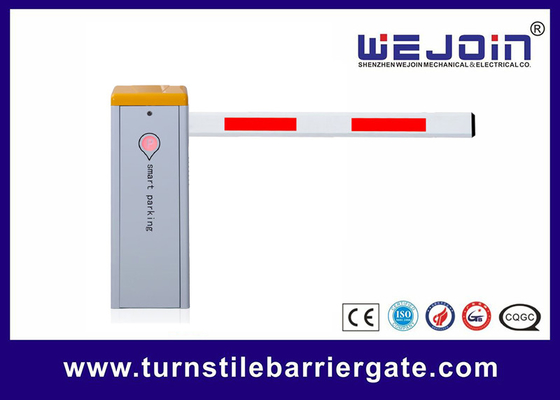

6 meters Arm length Barrier Arm Gate Operators for High traffic
Toll Gate Quick Detail:
The technology is applied to drive the motor of electric vehicle and spindle motor of CNC lathe.
# Strong moment, high precision control, low-temperature rise
# Standard traffic lights
# 3-5S speed adjustable
# yellow-green, dark grey + light grey, and yellow-white color optional
Toll Gate Technical Data
|
Model |
WJDZE (speed 3~5s adjustable) |
||||||
|
Running Speed |
3S |
4S |
5S |
5S |
5S |
5S |
5S |
|
Boom-Type |
Straight |
Straight |
Straight |
90° Folding |
180° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
4.5M |
5M |
6M |
5M |
4M |
4.5M |
4M |
|
Input Voltage |
AC220V±10%, AC110V±10% |
||||||
|
Frequency |
50/60HZ |
||||||
|
Motor Voltage |
DC310V |
||||||
|
Enclosure Rating |
IP54 |
||||||
|
Working Temperature |
-35°C ~ +85°C |
||||||
|
MTBF |
3 million times |
||||||
|
Traffic Flow Application |
24 hours uninterrupted operation |
||||||
|
Max Motor Power |
120W |
||||||
|
Max Motor Speed |
24r/min |
||||||
|
Max Torque |
240N.m |
||||||
Toll Gate Functions & Features
1 . No clutch design: open the barrier gate by manual handwheel when the power of.
2 . No limit switch design: the motor can detect the boom position automatically.
3 . Bi-direction boom holder design: left- installation and right-installation can be exchanged easily and quickly.
4 . Self-detect after power-on, open/close speed is adjustable.
5 . With auto-reversing on obstruction function.
6 . Infrared photocell interface and Loop detector interface is available.
7 . Built-in delay auto-closing function ,coordinated with counting function .
8 . With auto-aging test function.
9 . NO / NC wire control signal inputs are optional.
